WL250

WL250(A02-01) engine lodging Diagram

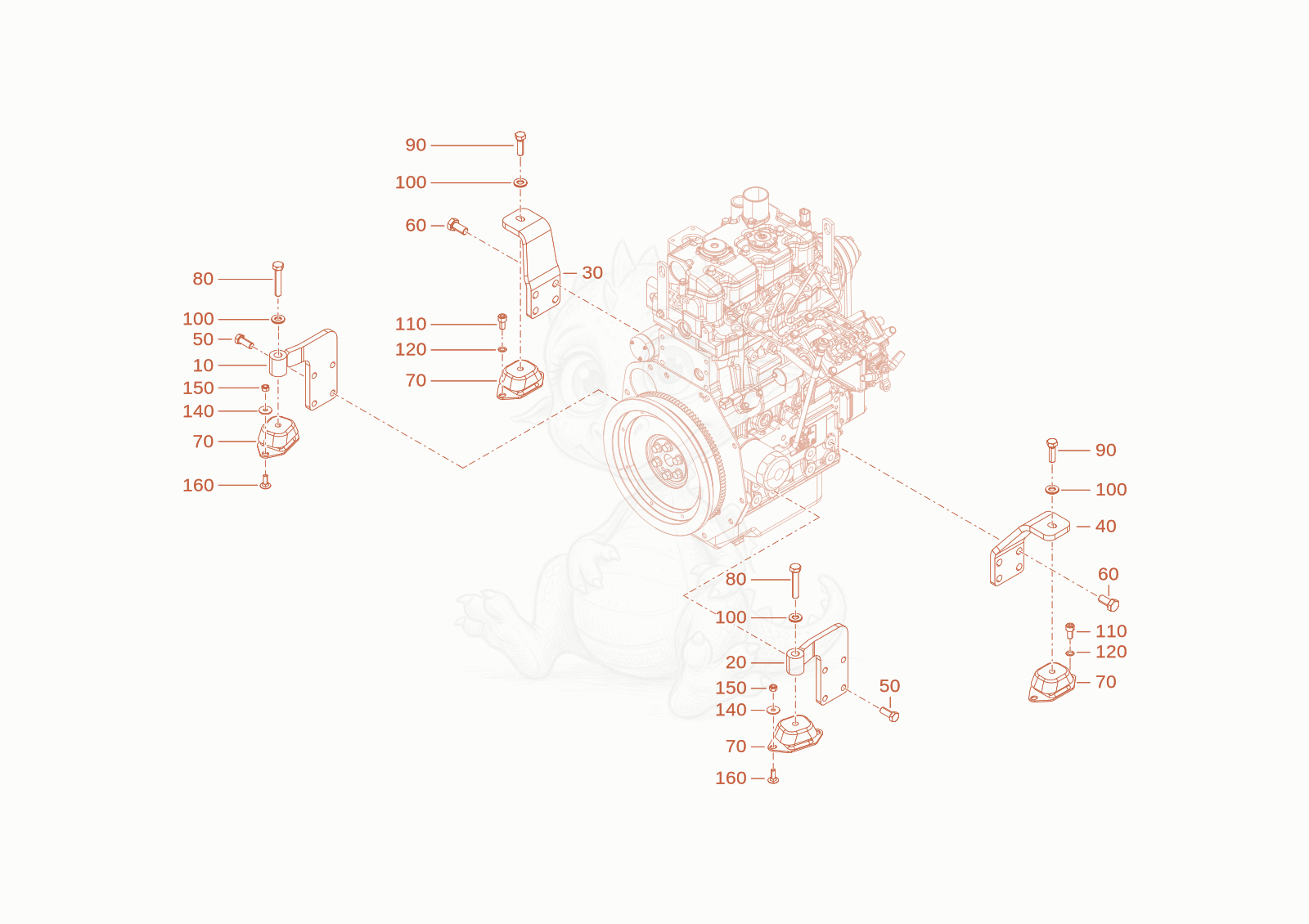

Exploded parts diagram of the engine lodging of a Wacker Neuson WL250(A02-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000439338
    $90.12
    Bracket - 1000439338×1
  • 201000439339
    $90.12
    Bracket - 1000439339×1
  • 301000439337
    $84.26
    Bracket - 1000439337×1
  • 401000439336
    $84.26
    Bracket - 1000439336×1
  • 501000222956
    $1.73
    Bolt - 1000222956×8
  • 601000223024
    $2.53
    hex screw - 1000223024×8
  • 701000489785Not stocked
    rubber buffer×4
  • 801000047393Not stocked
    hex screw×2
  • 901000085419
    $1.05
    hex screw - 1000085419×2
  • 1001000094970
    $1.71
    Nord-Lock disc NL12x25,4 - 1000094970×4
  • 1101000015354
    $0.82
    allen screw M10x20-8.8 A2C-DIN912 - 1000015354×4
  • 1201000015438Not stocked
    lock washer×4
  • 1401000013027Not stocked
    washer×4
  • 1501000013022Not stocked
    hexagon nut×4
  • 1601000048572Not stocked
    flat head screw×4
