WL250(A02-01) brake assembly Diagram

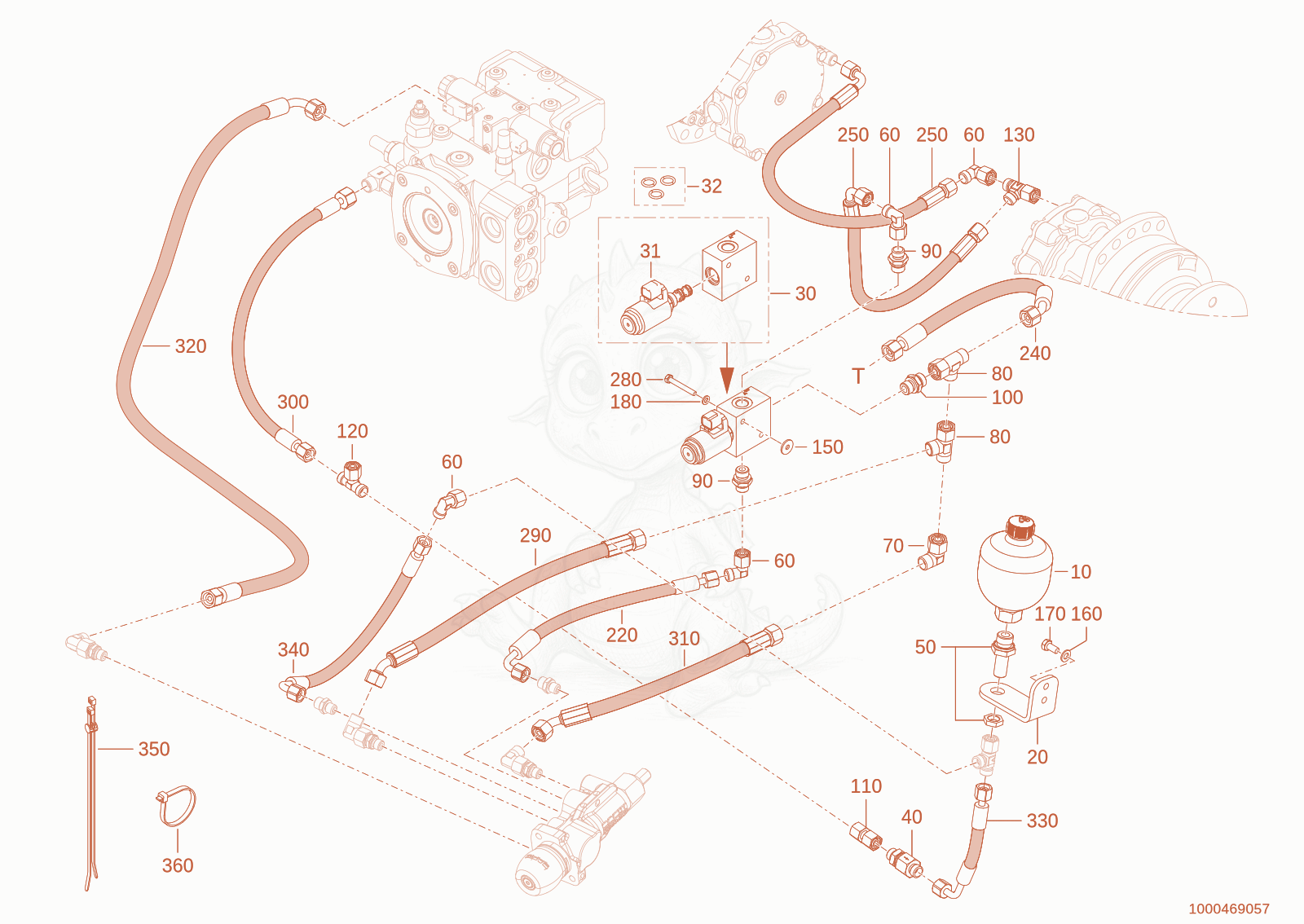

Exploded parts diagram of the brake assembly of a Wacker Neuson WL250(A02-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000202777
    $203.50
    Accumulator 1000202777×1
  • 201000449431Not stocked
    Bracket×1
  • 301000341493
    $218.65
    Valve - 1000341493×1
  • 311000346390
    $64.57
    Solenoid - 1000346390×1
  • 321000346401Not stocked
    seal kit valve cartridge×1
  • 401000027830Not stocked
    non return valve×1
  • 501000238586
    $18.41
    SCHOTTVERSCHRAUBUNG 10L 1/2" - 1000238586×1
  • 601000015510Not stocked
    screw joint×4
  • 701000000573Not stocked
    screw joint×4
  • 801000015516
    $13.63
    EL12LOMDA3C - 1000015516×2
  • 901000015491Not stocked
    screw joint×2
  • 1001000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×1
  • 1101000085038
    $9.08
    GZ10LA3C - 1000085038×1
  • 1201000085057
    $13.12
    ET10LOMDA3C - 1000085057×1
  • 1301000417279
    $17.79
    EL10LOMD - 1000417279×1
  • 1501000222992
    $1.08
    Washer - 1000222992×2
  • 1601000015431Not stocked
    washer×2
  • 1701000019136Not stocked
    hex screw×2
  • 1801000015430Not stocked
    u-washer×2
  • 2201000386573Not stocked
    Hose×1
  • 2401000395900Not stocked
    Hose×1
  • 2501000430073Not stocked
    Hose×2
  • 2801000085310
    $0.78
    hex screw - 1000085310×2
  • 2901000472153Not stocked
    Hose×1
  • 3001000474844Not stocked
    Hose×1
  • 3101000474846Not stocked
    Hose×1
  • 3201000474848Not stocked
    Hose×1
  • 3301000474845Not stocked
    Hose×1
  • 3401000473645Not stocked
    Hose×1
  • 3501000294015Not stocked
    fixing bracket×1
  • 3601000193759
    $0.36
    cable strap - 1000193759×1
