WL250(A02-01) Mechanical locking device Diagram

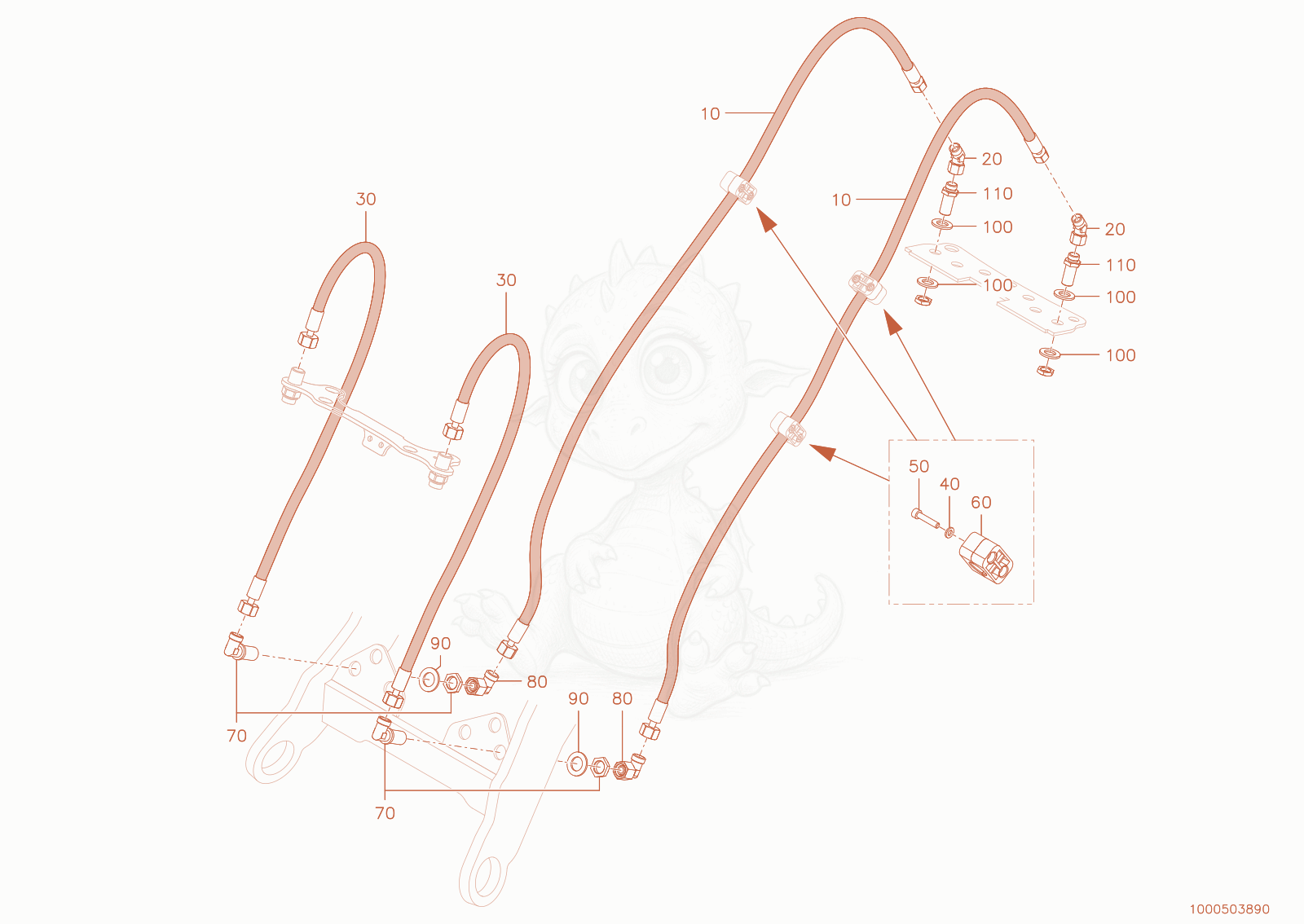

Exploded parts diagram of the Mechanical locking device of a Wacker Neuson WL250(A02-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000498702Not stocked
    Hose×2
  • 201000170681
    $53.60
    EW 12 L 45�� - 1000170681×2
  • 301000498691
    $25.89
    SLHYDR 2SC 10 PN12 0 PN15 0 L830,0A - 1000498691×2
  • 401000015430Not stocked
    u-washer×6
  • 501000015369Not stocked
    cheese head screw×6
  • 601000417271Not stocked
    clamp×3
  • 701000085080
    $12.42
    WSV12LOMDA3C - 1000085080×2
  • 801000000573Not stocked
    screw joint×2
  • 901000082620
    $0.08
    washer 23 - 1000082620×2
  • 1001000082625
    $0.83
    washer 19 - 1000082625×6
  • 1101000028480
    $5.07
    SV12-LA3C - 1000028480×2
