Vibroplate WP KMAT

WPKMAT Air filter Diagram

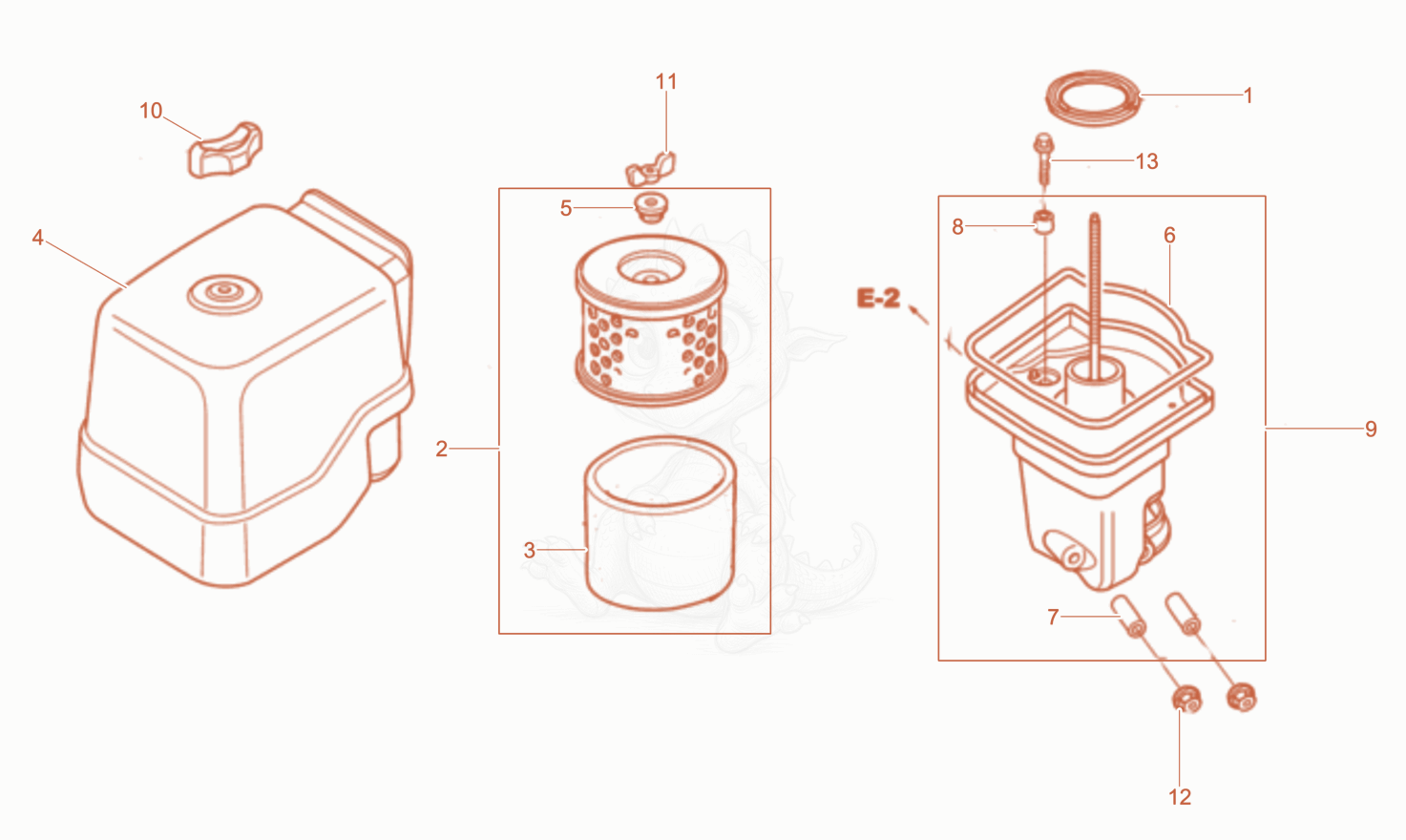

Exploded parts diagram of the Air filter of a Wacker Neuson WPKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100051237
    $15.27
    Seal - 5100051237×1
  • 25100039024
    $16.53
    Air filter cpl. - 5100039024×1
  • 35100039025
    $12.74
    Air filter external - 5100039025×1
  • 45100081215Not stocked
    cover cpl.×1
  • 55000072343
    $6.93
    GROMMET .240 ID,METALCLAD - 5000072343×1
  • 65100039027
    $9.42
    Gasket - 5100039027×1
  • 75000081746
    $5.49
    SLEEVE-AIR CLEANER - 5000081746×2
  • 85000126941
    $4.63
    sleeve - 5000126941×1
  • 95100039028
    $92.85
    Filter bracket cpl. - 5100039028×1
  • 105100031333
    $2.43
    Wing nut - 5100031333×1
  • 115000071621
    $7.20
    NUT-WING M6 - 5000071621×1
  • 125000071056
    $1.01
    NUT M6,HEX,FLANGE - 5000071056×2
  • 135100003499Not stocked
    Flange screw×1
