Vibroplate WP KMAT

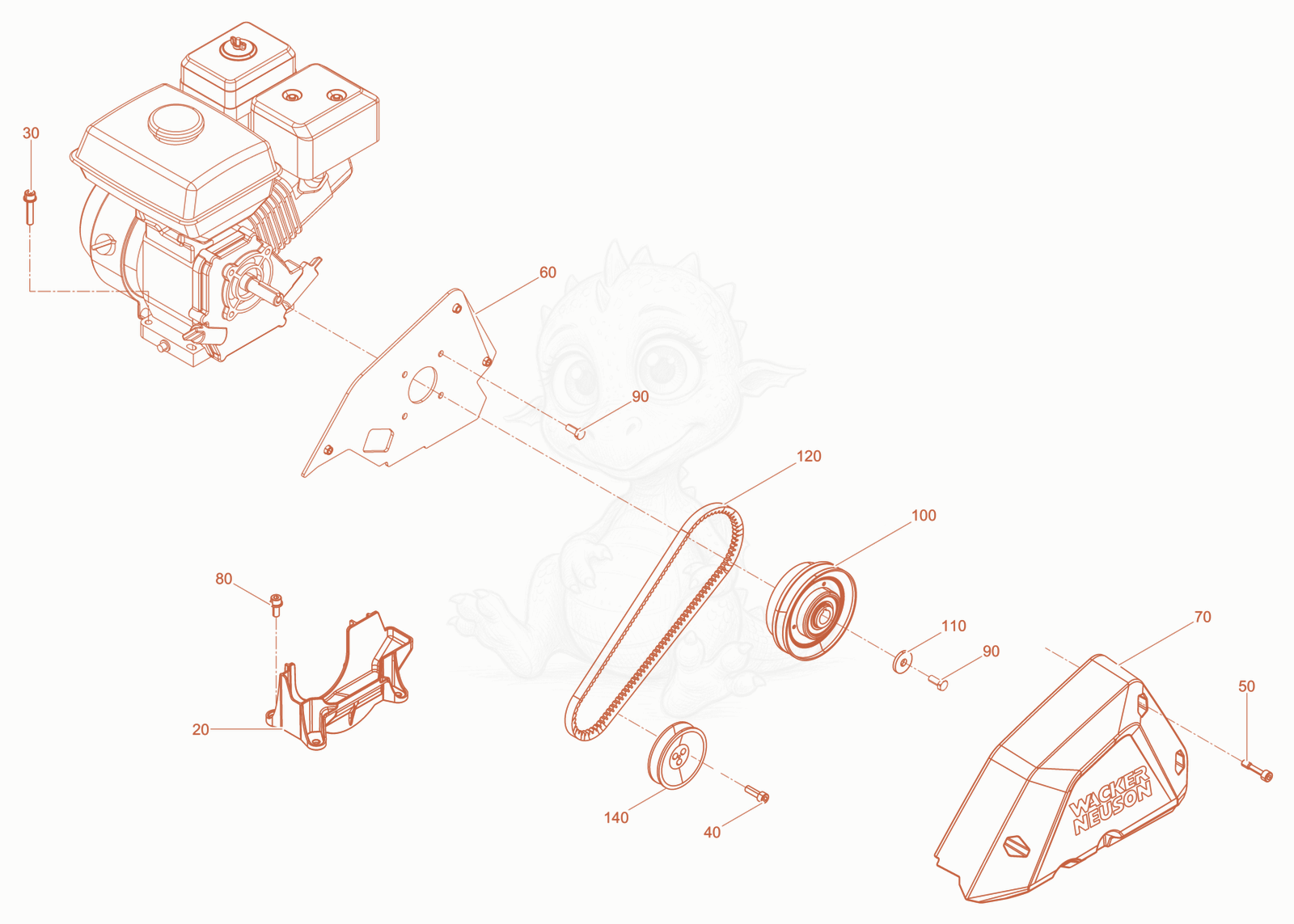

WPKMAT Drive System gas basis Diagram

Exploded parts diagram of the Drive System gas basis of a Wacker Neuson WPKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205100018341
    $29.30
    Belt Guard below - 5100018341×1
  • 305100042618
    $1.10
    Combi cylinder head screw M 8x 20 - 5100042618×4
  • 405100029787
    $0.41
    Cheese head screw M 8x 25 - 5100029787×3
  • 505000216658
    $3.31
    SCREW - 5000216658×3
  • 605100065610Not stocked
    Guard plate cpl.×1
  • 705100065612Not stocked
    Belt guard×1
  • 805100036848
    $1.24
    Cheese head screw M 8x 40 - 5100036848×4
  • 905000026169
    $0.25
    SCREW 5/16-24 X 3/4,HX.HD. - 5000026169×5
  • 1005100054097
    $228.46
    Clutch - 5100054097×1
  • 1105100016321
    $3.63
    Washer - 5100016321×1
  • 1205100065636
    $27.15
    Belt - 5100065636×1
  • 1405100065896
    $30.56
    Pulley BPS - 5100065896×1
