Vibroplate WP KMAT

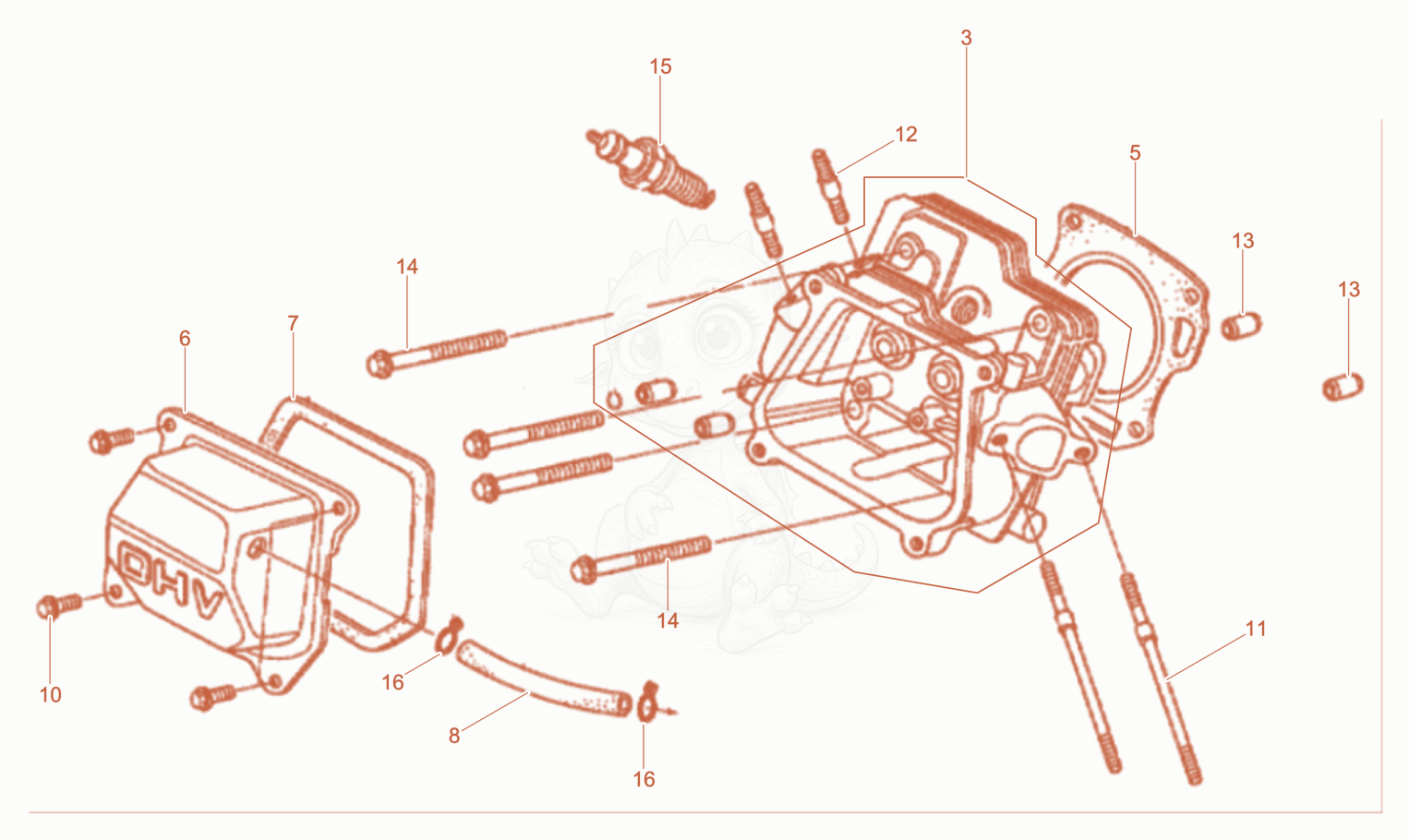

WPKMAT Cylinder head Diagram

Exploded parts diagram of the Cylinder head of a Wacker Neuson WPKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35200006480
    $77.68
    HEAD-ENGINE CYLINDER - 5200006480×1
  • 55100005329Not stocked
    Cylinder head gasket×1
  • 65100084956Not stocked
    Cover cpl.×1
  • 75100080975Not stocked
    Cylinder head gasket×1
  • 85000217757
    $5.02
    Breather tube - 5000217757×1
  • 105000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×4
  • 115100051311Not stocked
    Stud×2
  • 125100051312Not stocked
    Threaded pin×2
  • 135000070950
    $5.75
    PIN-DOWEL - 5000070950×2
  • 145000213398
    $2.28
    BOLT-FLANGE,8 X 60 - 5000213398×4
  • 155000207671
    $12.43
    Spark plug - 5000207671×1
  • 165000217758
    $1.17
    CLIP-TUBE - 5000217758×2
