Vibroplate WP KMAT

WPKMAT Water System Diagram

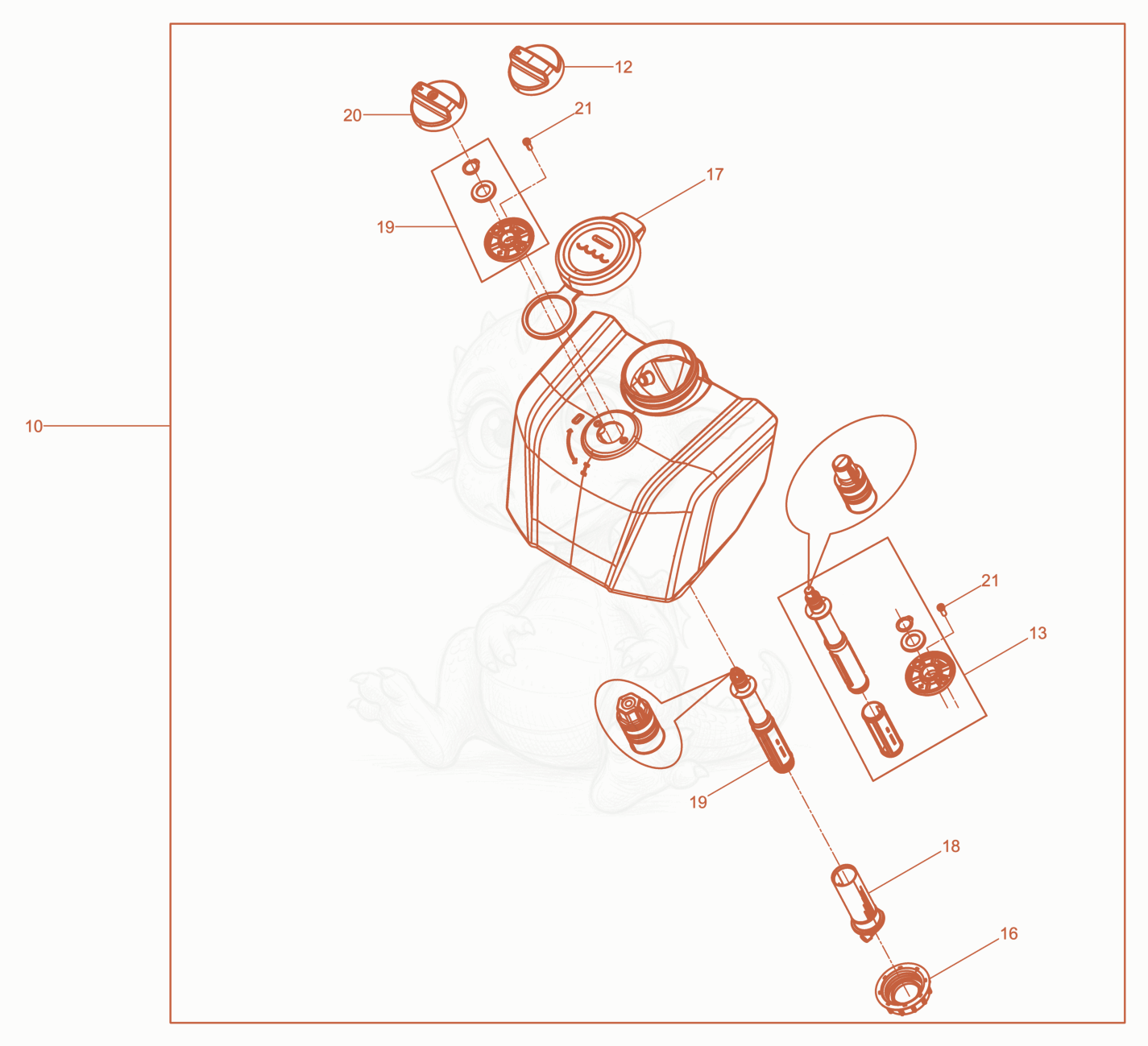

Exploded parts diagram of the Water System of a Wacker Neuson WPKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100064647Not stocked
    Watertank cpl. big×1
  • 125100072172
    $26.21
    Turning handle cpl. - 5100072172×1
  • 135100072171
    $59.05
    Control rod cpl. - 5100072171×1
  • 165100053603
    $15.41
    Cap screw - 5100053603×1
  • 175100051982
    $43.41
    Water tank cap - 5100051982×1
  • 185100072173
    $13.62
    Filter cpl. - 5100072173×1
  • 195100079293Not stocked
    Control rod cpl.×1
  • 205100079294Not stocked
    Turning handle cpl.×1
  • 215000069425Not stocked
    Cheese head screw×2
