Vibroplate WP KMAT

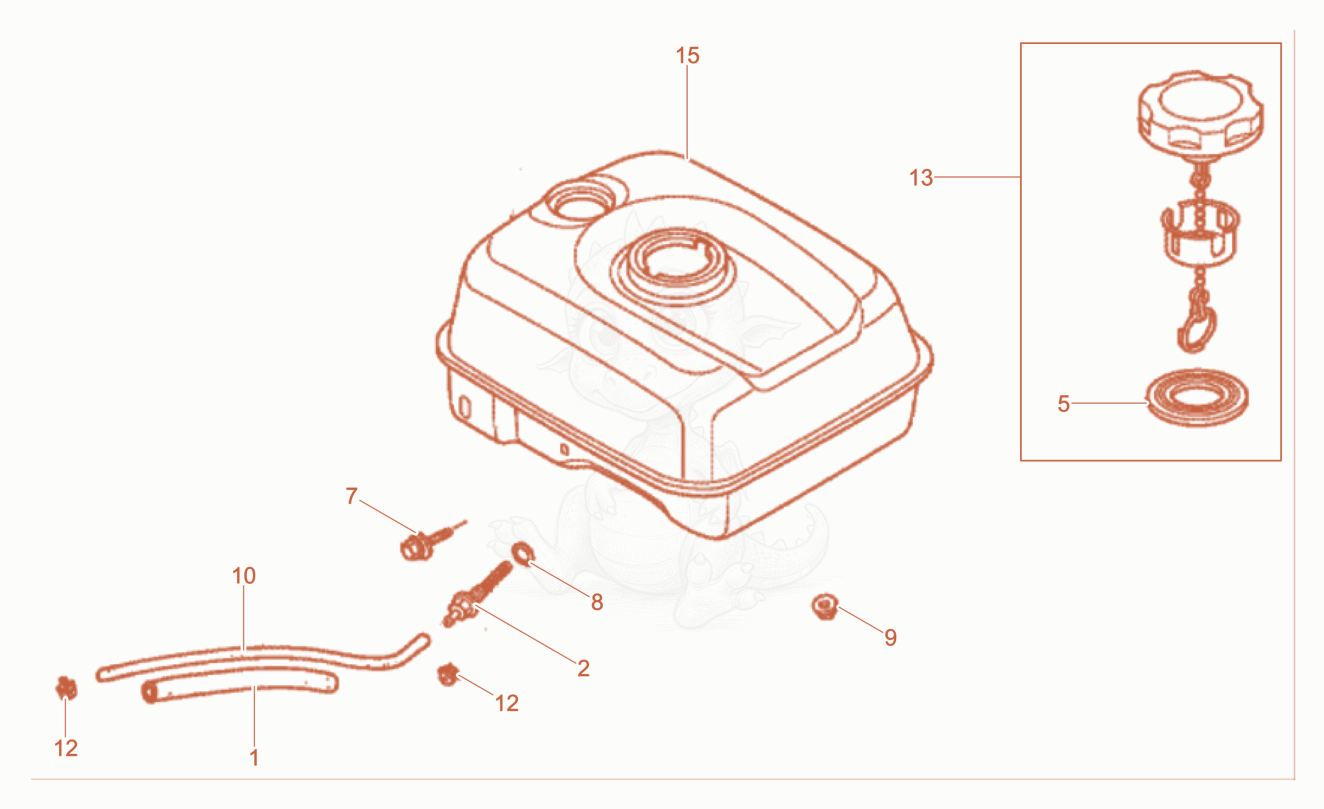

WPKMAT Fuel tank Diagram

Exploded parts diagram of the Fuel tank of a Wacker Neuson WPKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000081764
    $6.03
    hose cover - 5000081764×1
  • 25100000395Not stocked
    Fuel Filter×1
  • 55000209770
    $1.03
    Gasket - 5000209770×1
  • 75000209771
    $1.68
    BOLT-FLANGE 6 X 29 - 5000209771×1
  • 81000133535Not stocked
    o-ring×1
  • 95000071056
    $1.01
    NUT M6,HEX,FLANGE - 5000071056×2
  • 105100084954Not stocked
    Fuel hose×1
  • 125000208617
    $3.39
    CLAMP-TUBE - 5000208617×2
  • 135100081176Not stocked
    Tank cover cpl.×1
  • 155100005323Not stocked
    Fuel Tank cpl.×1
