Vibroplate WP KMAT

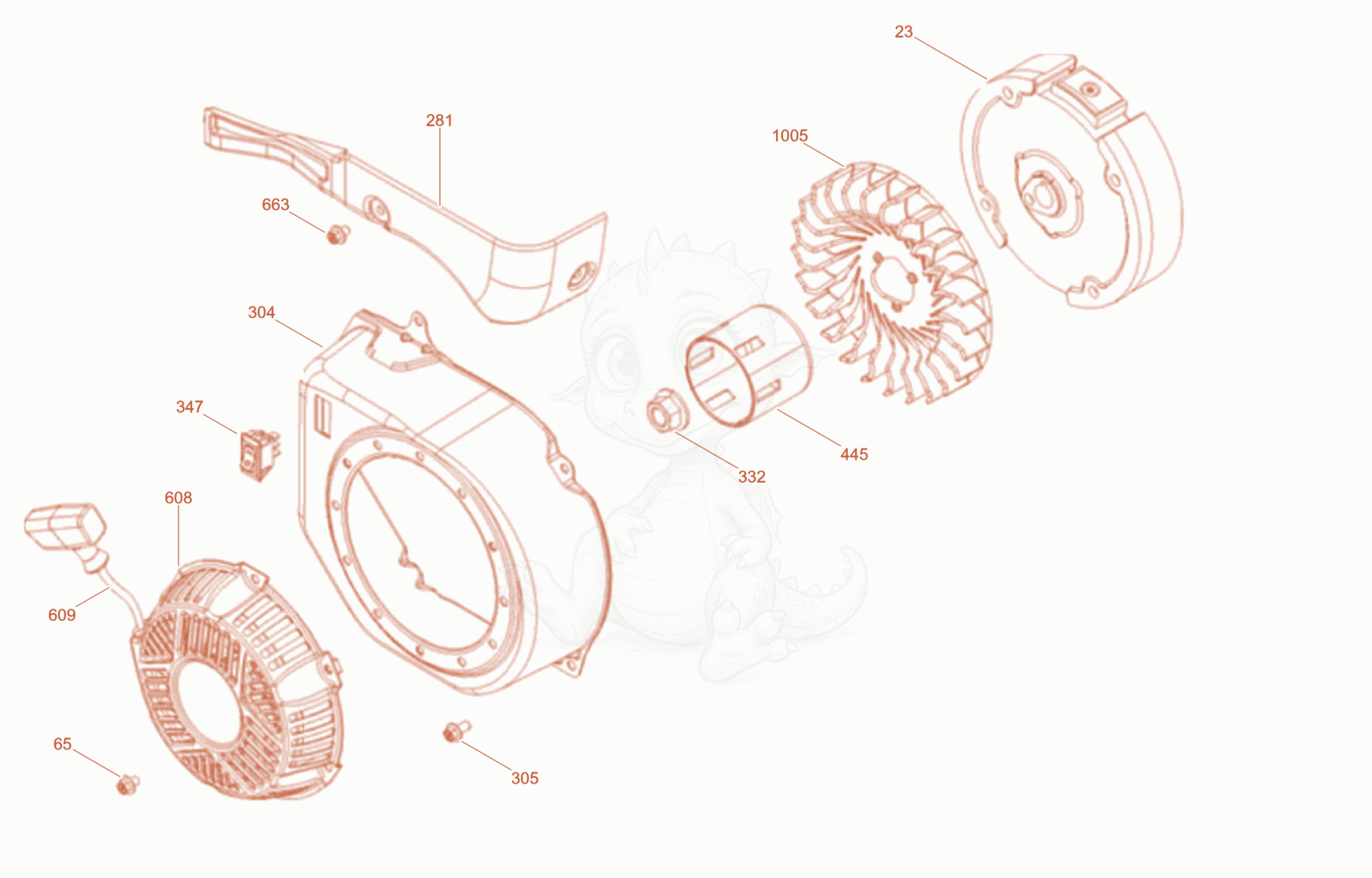

WPKMAT Fly wheel - Recoil starter Diagram

Exploded parts diagram of the Fly wheel - Recoil starter of a Wacker Neuson WPKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 235100067156
    $145.93
    Fly wheel - 5100067156×1
  • 655100067181
    $10.87
    Hexagonal head cap screw - 5100067181×4
  • 2815100067203
    $43.81
    Plate - 5100067203×1
  • 3045100067206
    $131.14
    Fan hood - 5100067206×1
  • 3055100067182
    $10.87
    Hexagonal head cap screw - 5100067182×4
  • 3325100067208
    $12.96
    Nut - 5100067208×1
  • 3475100067212
    $25.96
    Switch - 5100067212×1
  • 4555100067220
    $31.47
    Carrier - 5100067220×1
  • 6085100067230Not stocked
    Recoil starter×1
  • 6095100067337
    $15.04
    Starter rope - 5100067337×1
  • 6635100067235
    $10.47
    Hexagonal head cap screw - 5100067235×2
  • 10055100067243Not stocked
    Fan wheel×1
