WN Excavator 2404

2404 COVERING/FOPS (Option) Diagram

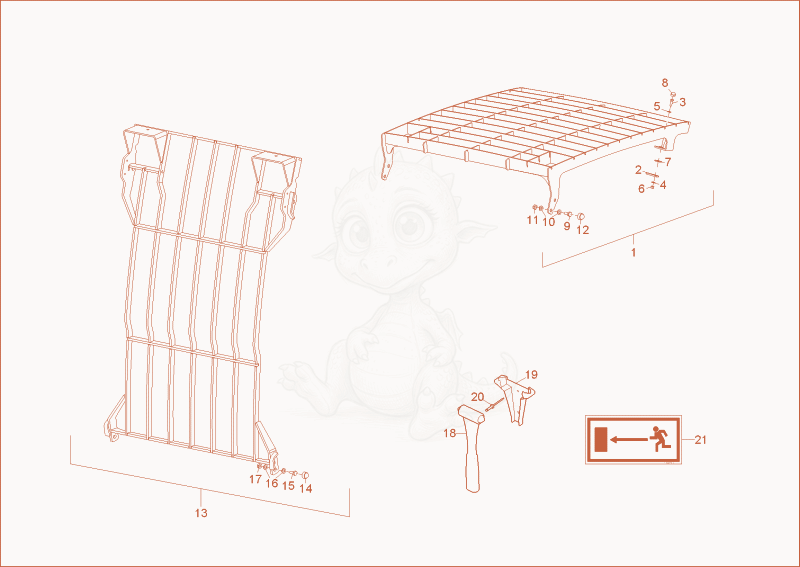

Exploded parts diagram of the COVERING/FOPS (Option) of a Wacker Neuson 2404, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000253747Not stocked
    fops screen×1
  • 21000255490
    $19.56
    plate - 1000255490×2
  • 31000047827Not stocked
    hex screw×2
  • 41000015448Not stocked
    washer×4
  • 51000255489
    $4.72
    WASHER - 1000255489×4
  • 61000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 71000004289Not stocked
    rubber disc×12
  • 81000004276Not stocked
    cover cap×4
  • 91000015348Not stocked
    hex screw×4
  • 101000094974
    $0.70
    washer M10-DIN134 - 1000094974×8
  • 111000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 121000067799Not stocked
    cover cap×8
  • 131000253757Not stocked
    protecting screen×1
  • 141000255488
    $9.06
    cover cap - 1000255488×8
  • 151000015381Not stocked
    hex screw×4
  • 161000241248
    $2.53
    washer - 1000241248×8
  • 171000020127Not stocked
    hexagon nut×4
  • 181000085714
    $19.89
    emergency hammer - 1000085714×1
  • 191000085715
    $6.86
    bracket emergency hammer - 1000085715×1
  • 201000082698
    $0.65
    blind rivet A3x12 - 1000082698×2
  • 211000236468
    $13.49
    STICKER - 1000236468×1
