WN Excavator 2404

2404 LIFTING ARM CYLINDER (OPTION) Diagram

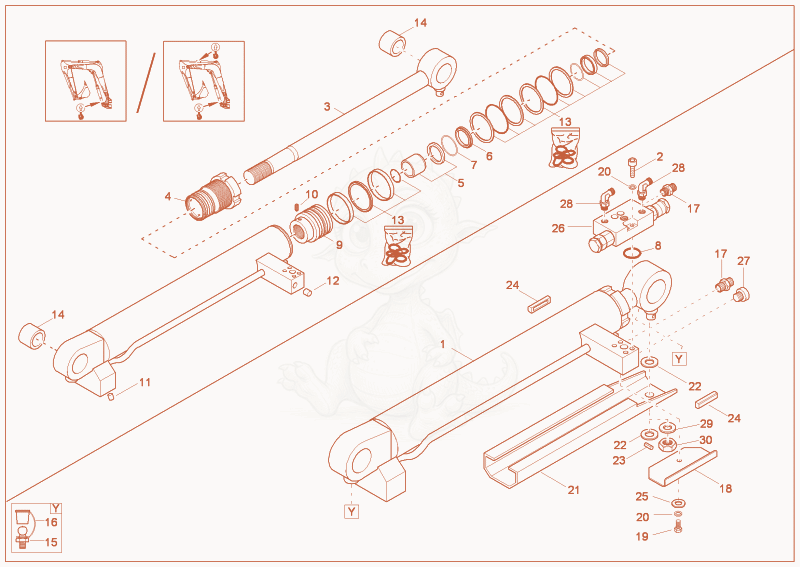

Exploded parts diagram of the LIFTING ARM CYLINDER (OPTION) of a Wacker Neuson 2404, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000186349Not stocked
    boom cylinder×1
  • 21000020127Not stocked
    hexagon nut×1
  • 31000177466Not stocked
    piston rod×1
  • 41000177467Not stocked
    guide bushing×1
  • 51000177525Not stocked
    shock absorber×1
  • 61000068605Not stocked
    fastenring×1
  • 71000095015
    $1.03
    lock ring - 1000095015×1
  • 81000049219Not stocked
    washer×1
  • 91000177468Not stocked
    piston×1
  • 101000015384Not stocked
    thread pin×1
  • 111000082819Not stocked
    ballexpander×1
  • 121000082784Not stocked
    ballexpander×1
  • 131000177493Not stocked
    cylinder seal kit×1
  • 141000015614
    $12.93
    steel bushing - 1000015614×2
  • 151000015475Not stocked
    grease nipple×2
  • 161000015480Not stocked
    cap grease nipple×2
  • 171000015491Not stocked
    screw joint×1
  • 181000012980
    $22.62
    GUIDE-ELEMENT - 1000012980×2
  • 191000082719
    $0.73
    cotter pin 5x36 - 1000082719×1
  • 201000082625
    $0.83
    washer 19 - 1000082625×2
  • 211000177932Not stocked
    protecting rail×1
