WN Excavator 2404

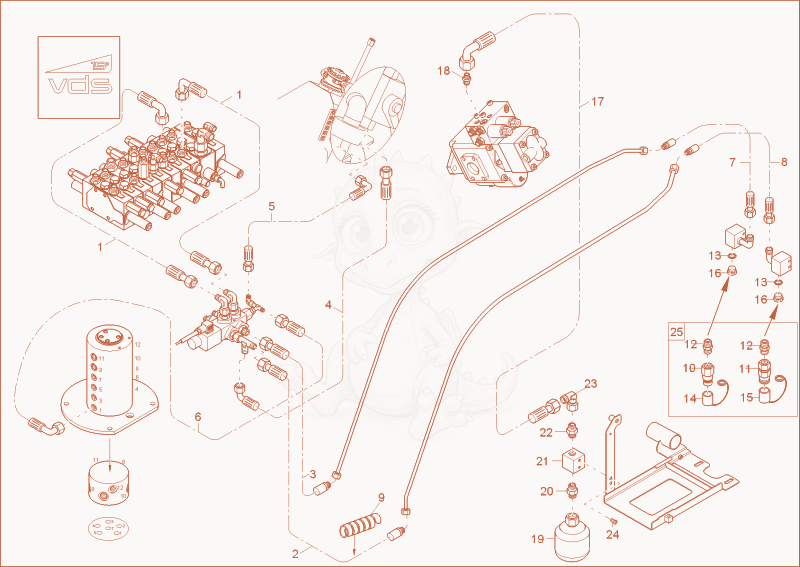

2404 AUXILIARY FUNCTION INST. (OPTION) Diagram

Exploded parts diagram of the AUXILIARY FUNCTION INST. (OPTION) of a Wacker Neuson 2404, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000077118Not stocked
    Hose×2
  • 21000108247Not stocked
    Hose×1
  • 31000108243Not stocked
    Hose×1
  • 41000022535Not stocked
    Hose×1
  • 51000112774
    $28.14
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1100 0 - 1000112774×1
  • 61000021506
    $32.53
    SLHYDR 1SCP6,0PN8 0 PN8 90 L600,0 - 1000021506×1
  • 71000077122Not stocked
    Hose×1
  • 81000077432Not stocked
    Hose×1
  • 91000172069Not stocked
    protecting hose×0.55
  • 101000109377
    $36.52
    Quick lock coupling 1/2'' Flat Face - 1000109377×1
  • 111000109378
    $54.82
    Quick lock coupling 1/2" Flat Face - 1000109378×1
  • 121000015494Not stocked
    screw joint×2
  • 131000015704
    $1.14
    O-RING - 1000015704×2
  • 141000109416
    $8.43
    Protection cap - 1000109416×1
  • 151000109417
    $10.12
    Protection cap - 1000109417×1
  • 161000082807Not stocked
    screw joint×2
  • 171000013147Not stocked
    Hose×1
  • 181000083024
    $4.01
    GE10LR3/8OROMDA3C - 1000083024×1
  • 191000261221
    $127.26
    ACCUMULATOR - 1000261221×1
  • 201000082006
    $33.64
    signal - 1000082006×1
  • 211000066410Not stocked
    bracket bubble acumulator×1
  • 221000082844
    $5.84
    GE10LR1/2EDOMDA3C - 1000082844×1
  • 231000015510Not stocked
    screw joint×1
  • 241000085527
    $0.70
    countersunk screw - 1000085527×2
  • 251000242546
    $132.10
    retrofit kit coupling - 1000242546×1
