WN Excavator 2404

2404 fuel system Diagram

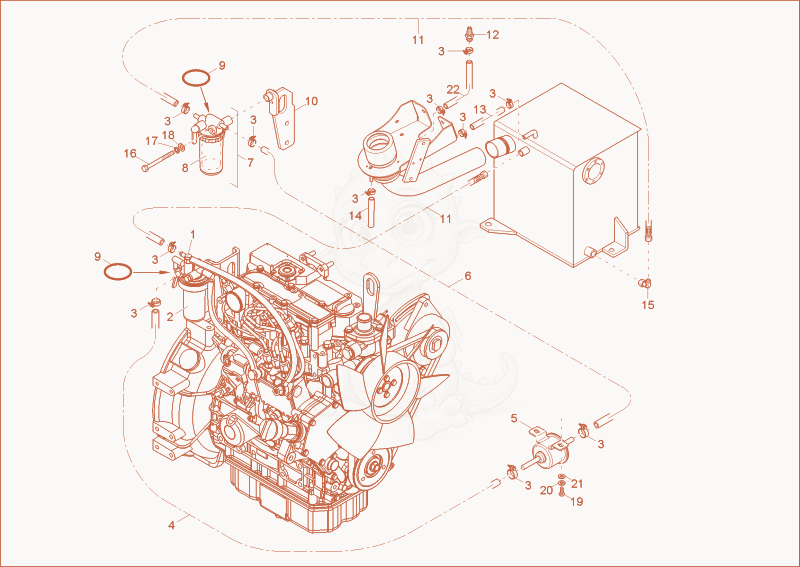

Exploded parts diagram of the fuel system of a Wacker Neuson 2404, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000133262
    $84.21
    Fuel filter - 1000133262×1
  • 21000147873
    $13.92
    FUEL FILTER INSERT - 1000147873×1
  • 31000083292Not stocked
    hose clamp×11
  • 41000411932Not stocked
    fuel line×0.3
  • 51000093894
    $299.72
    FUEL PUMP - 1000093894×1
  • 61000411932Not stocked
    fuel line×0.9
  • 71000003893Not stocked
    Water Seperator×1
  • 81000098673
    $18.35
    Filter insert - 1000098673×1
  • 91000019708
    $1.69
    O-RING - 1000019708×2
  • 101000132374Not stocked
    bracket fuelfilter×1
  • 111000069115Not stocked
    fuel line×2
  • 121000069386Not stocked
    sintermetal filter×1
  • 131000411932Not stocked
    fuel line×0.7
  • 141000411932Not stocked
    fuel line×0.7
  • 151000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 161000085319
    $1.28
    6-Point screw M8x80-8.8 A2C - 1000085319×1
  • 171000015437Not stocked
    lock washer×1
  • 181000015431Not stocked
    washer×1
  • 191000085381
    $0.65
    HEX SCREW - 1000085381×2
  • 201000015436Not stocked
    lock washer×2
  • 211000015430Not stocked
    u-washer×2
  • 221000411932Not stocked
    fuel line×0.6
