WN Excavator 2404

2404 heating Diagram

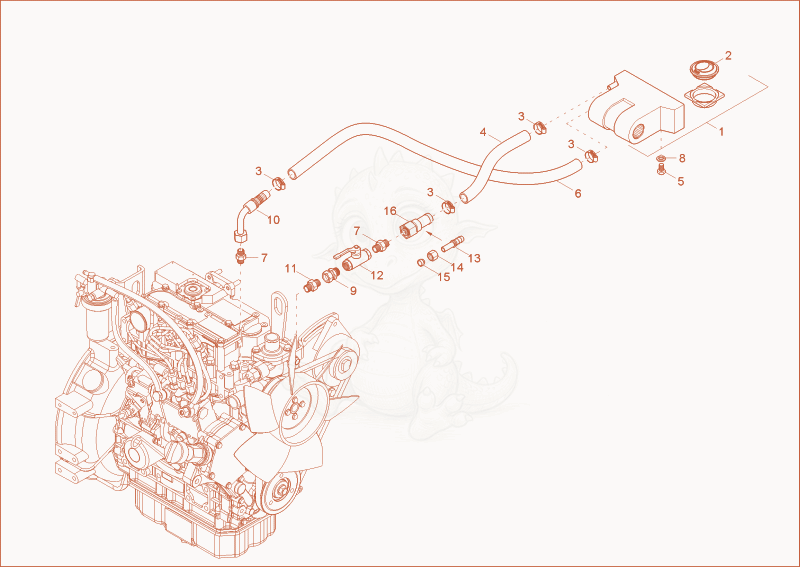

Exploded parts diagram of the heating of a Wacker Neuson 2404, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000108214
    $380.38
    heating - 1000108214×1
  • 21000002892Not stocked
    swivel nozzle×2
  • 31000267810
    $4.29
    hose clamp - 1000267810×4
  • 41000098192Not stocked
    hose×0.9
  • 51000015377Not stocked
    hex screw×3
  • 61000098192Not stocked
    hose×1
  • 71000082875
    $6.68
    GE12LR3/8A3CX GEK. GEWINDE - 1000082875×2
  • 81000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×3
  • 91000015543Not stocked
    screw joint×1
  • 101000267953
    $78.88
    hose sleeve - 1000267953×1
  • 111000085053
    $2.82
    GE12LMEDOMDA3C - 1000085053×1
  • 121000021495Not stocked
    ball valve×1
  • 131000016293
    $22.33
    hose sleeve - 1000016293×1
  • 141000015482
    $0.85
    M12L ST A3C - 1000015482×1
  • 151000015484
    $1.40
    DPR12LX - 1000015484×1
  • 161000267951
    $22.17
    hose sleeve - 1000267951×1
