WN Excavator 2404

2404 LIFTING BOOM OPERATION Diagram

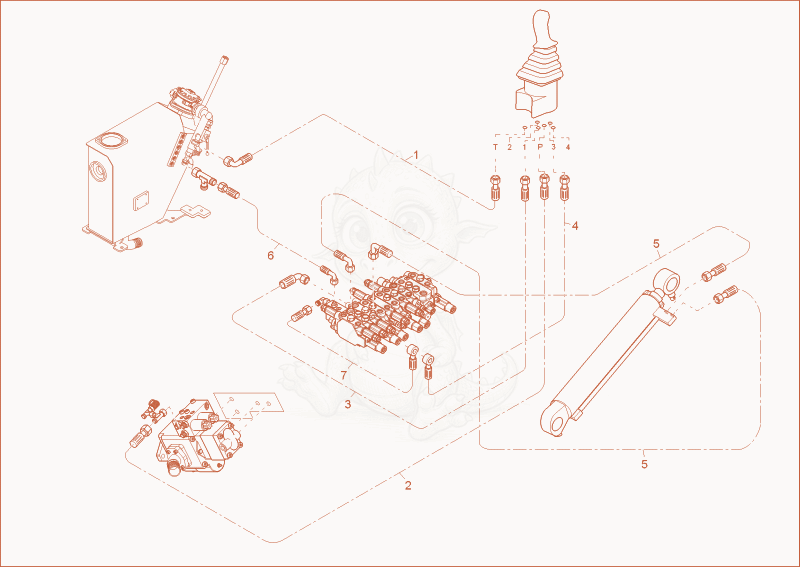

Exploded parts diagram of the LIFTING BOOM OPERATION of a Wacker Neuson 2404, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000358743Not stocked
    Hose×1
  • 21000076392
    $18.18
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2000 0 - 1000076392×1
  • 31000106498
    $22.02
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2500 0 - 1000106498×1
  • 41000106404
    $51.37
    SLHYDR 1SCP6,0PN8 0 RN1/40 L2100 0 - 1000106404×1
  • 51000260926Not stocked
    Hose×2
  • 61000076309
    $15.92
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1300 0 - 1000076309×1
  • 71000076639Not stocked
    Hose×1
  • 81000015515Not stocked
    screw joint×1
