DPU6055-VIBROPLATE

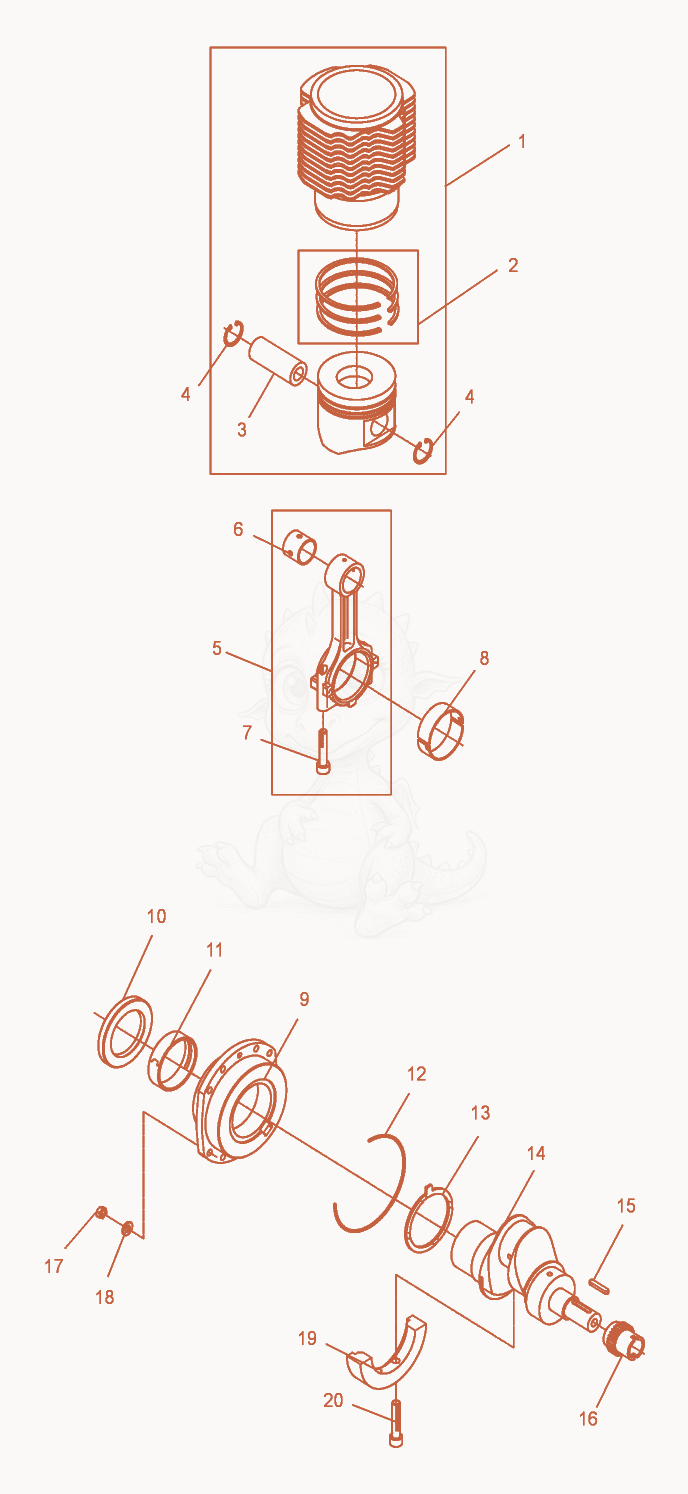

DPU6055 Cylinder with Piston-Connecting Rod-Crankshaft Diagram
- 5000094878$327.76SET-GASKETS,CRANKCASE - 5000094878×1
- cylinder with piston - 5000126514×1
- SET-PISTON RINGS - 5000094861×1
- PIN-PISTON MOUNT - 5000094862×1
- RET.RING-INT 30MMX1.2MM, - 5002001695×2
- CONNECTING ROD COMPLETE - 5000094863×1
- BUSHING-CONNECTING ROD - 5000094864×1
- SCREW-CONNECTING ROD - 5000105927×2
- BEARING-CONNECTING ROD - 5000094866×1
- ROD-CONNECTION,BEARING 0.5MM - 5000107222×1
- FLANGE-BEARING - 5000128939×1
- SEAL-SHAFT - 5000094875×1
- SET-GASKET - 5000105041×1
- BEARING-SLIDING - 5000094874×1
- BEARING-0.5MM - 5000107223×1
- O-Ring - 5000094872×1
- PLATE - 5000094871×1
- Crankshaft - 5000094869×1
- KEY A6 X 4 X 32 - 5000094868×1
- Pinion - 5000106529×1
- NUT M8 10 - 5000094876×8
- WASHER-FLAT,M8,ZINC - 5000010622×8
- COUNTER-WEIGHT - 5000094870×1
- SCREW M10 X 50 10.9,SOC - 5000013354×2
