DPU6055-VIBROPLATE

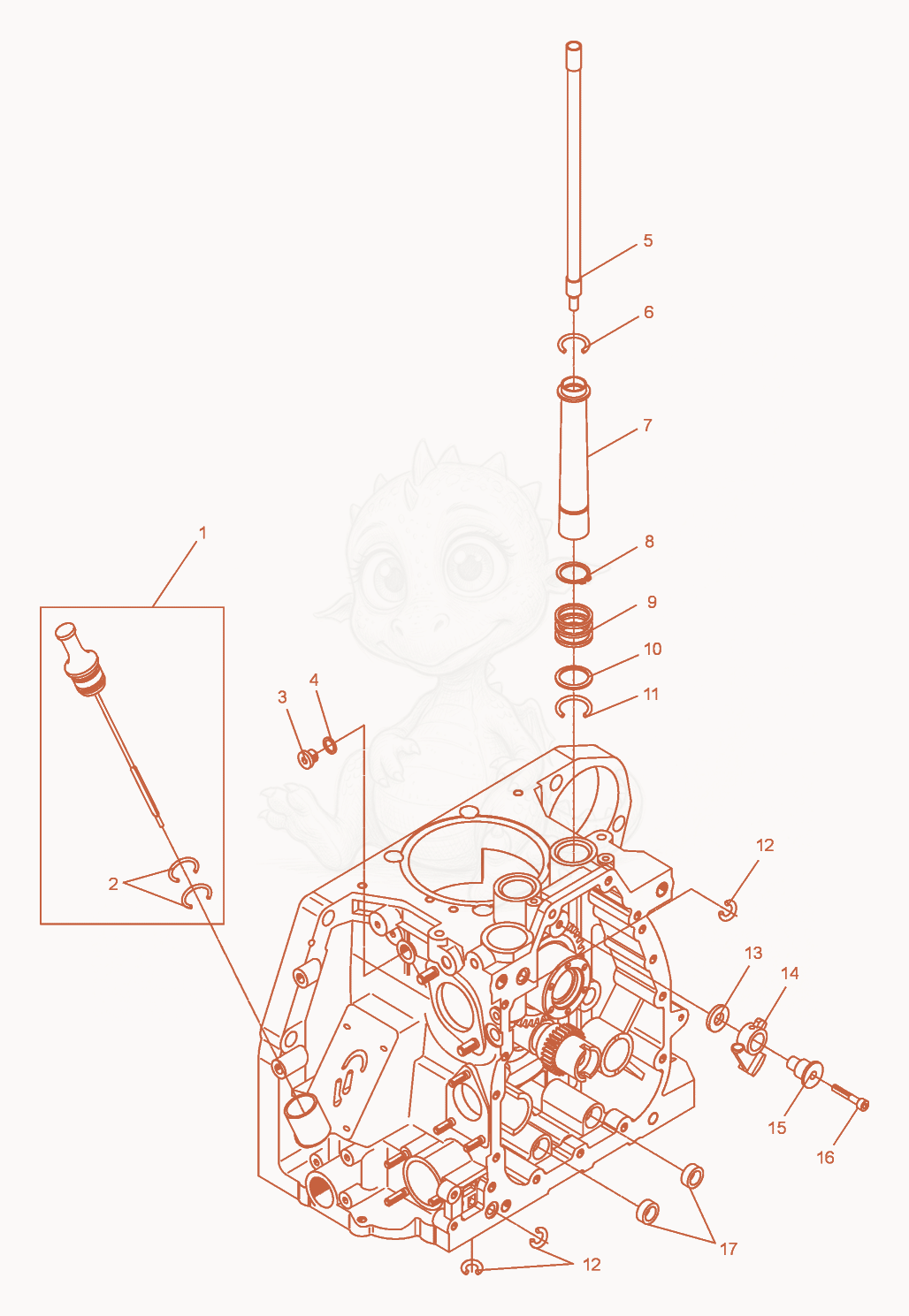

DPU6055 Crankcase-Dipstick Diagram
- Dipstick - 5000094932×1
- O-Ring - 5000094933×2
- PLUG M10 X 1 - 5000011047×2
- SEAL-RING 10 X 13.5 - 5000012086×2
- ROD-PUSH - 5000098457×2
- O-Ring - 5000094944×2
- PIPE - 5000094943×2
- RET.RING-EXT 24MMX1.7MM, - 5000094942×2
- Spring - 5000094941×2
- Washer - 5000094940×2
- O-Ring - 5000094939×2
- O-Ring - 5000094934×3
- Washer - 5000104365×2
- LEVER-SLIDING - 5000094937×2
- SHAFT-SPINDLE,CAM FOLLOWER - 5000094936×2
- SCREW M6 X 30 SOC.HD. - 5000011549×2
- WASHER-SEALING RING - 5000094935×2
