DPU6055-VIBROPLATE

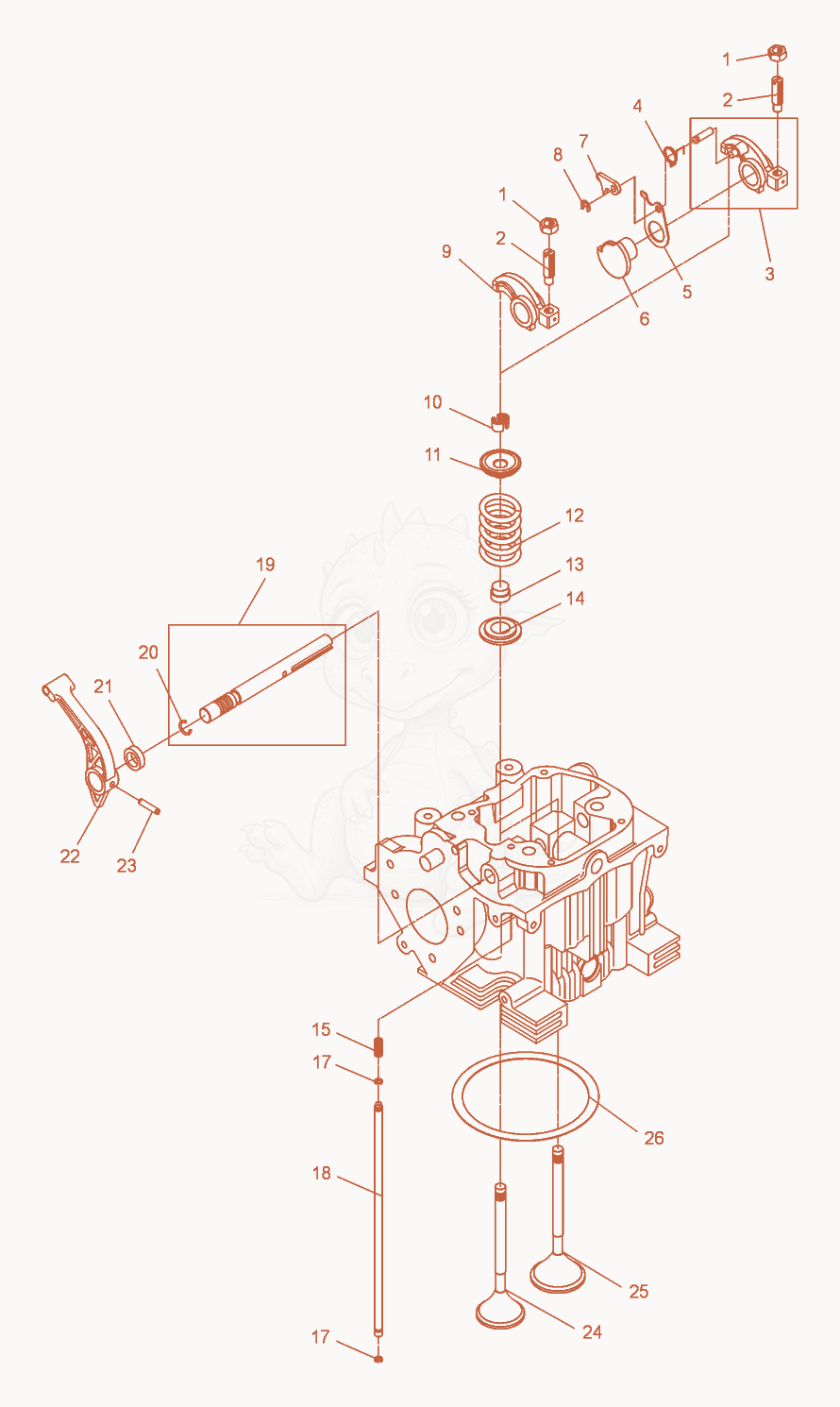

DPU6055 Cylinder Head-Valve Diagram
- NUT-LOCK 5/16X24 - 5004101500×2
- SCREW-ADJUSTING - 5000094891×2
- ROCKER ARM EXHAUST - 5000098448×1
- Spring - 5000094894×1
- HOLDER - 5000094895×1
- 65000094896Not stockedAdjusting toothed ratchet×1
- RATCHET-PAWL - 5000094897×1
- RET.RING-EXT 4MM,E TYP - 5002006160×1
- ROCKER ARM INTAKE - 5000098449×1
- SET-TAPER,CONE VALVE - 5000094899×2
- HOLDER-SPRING - 5000094900×2
- SPRING-VALVE - 5000094901×2
- Seal - 5100010410×2
- 145000094902Not stockedWasher×2
- O-Ring - 5000094905×2
- TUBE-GREASE - 5000094906×1
- SHAFT-ROCKER - 5000105928×1
- O-RING 8 X 2-70 DEG. SH - 5004101560×1
- SEAL - 5000097401×1
- LEVER-DECOMPRESSION - 5000094909×1
- PIN 4 X 20 - 5000094910×1
- VALVE-INLET - 5000105043×1
- VALVE-EXHAUST - 5000105044×1
- GASKET 0.5MM - 5000099413×1
- GASKET 0.6MM - 5000094913×1
- GASKET 0.7MM - 5000094914×1
- GASKET 0.8MM - 5000094915×1
- GASKET 0.9MM - 5000094916×1
- GASKET 1.0MM - 5000094917×1
- GASKET 1.1MM - 5000094918×1
- GASKET 1.2MM - 5000094919×1
- GASKET 1.3MM - 5000094920×1
