DPU6055-VIBROPLATE

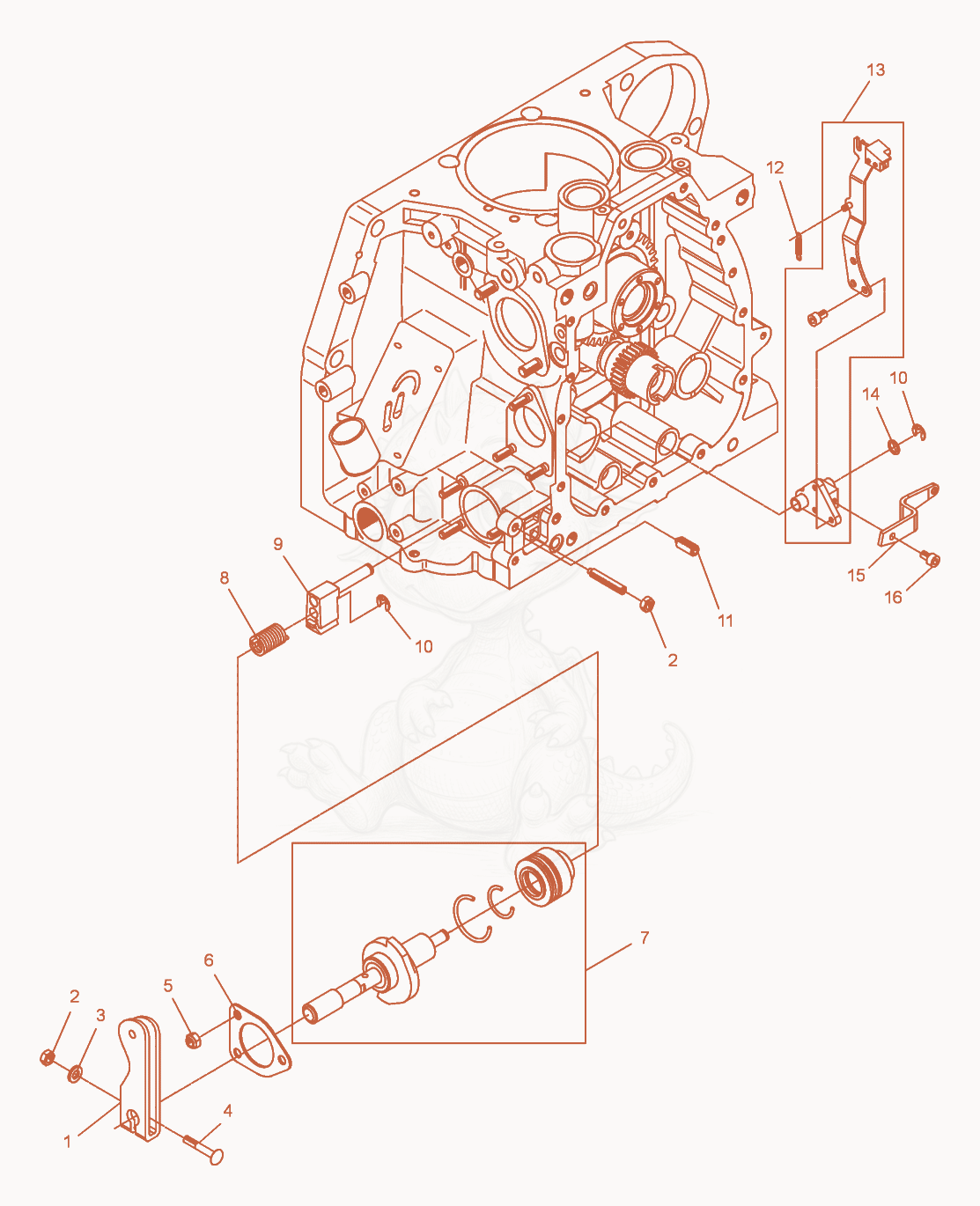

DPU6055 Governor lever Diagram
- Lever - 5000104407×1
- NUT M6 8,HEX - 5000010880×2
- WASHER B6.4 FLAT - 5000010624×1
- 45000094960Not stockedScrew×1
- NUT-LOCK VM6 HEX - 5000021679×3
- flange - 5000103080×1
- SHAFT-THROTTLE COMPLETE - 5000107227×1
- SPRING-TORSION - 5000097416×1
- Guide - 5000097417×1
- RET.RING-EXT 6MM,E-TYP - 5000033724×2
- SCREW-SET M8 X 20 SOC. - 5000014852×1
- Spring - 5000094966×1
- LEVER-GOVERNOR COMPLETE - 5000126519×1
- Washer - 5000094970×1
- LEVER-GOVERNOR - 5000094969×1
- SCREW M5 X 8 SOC.HD. - 5000049190×1
