DPU6055-VIBROPLATE

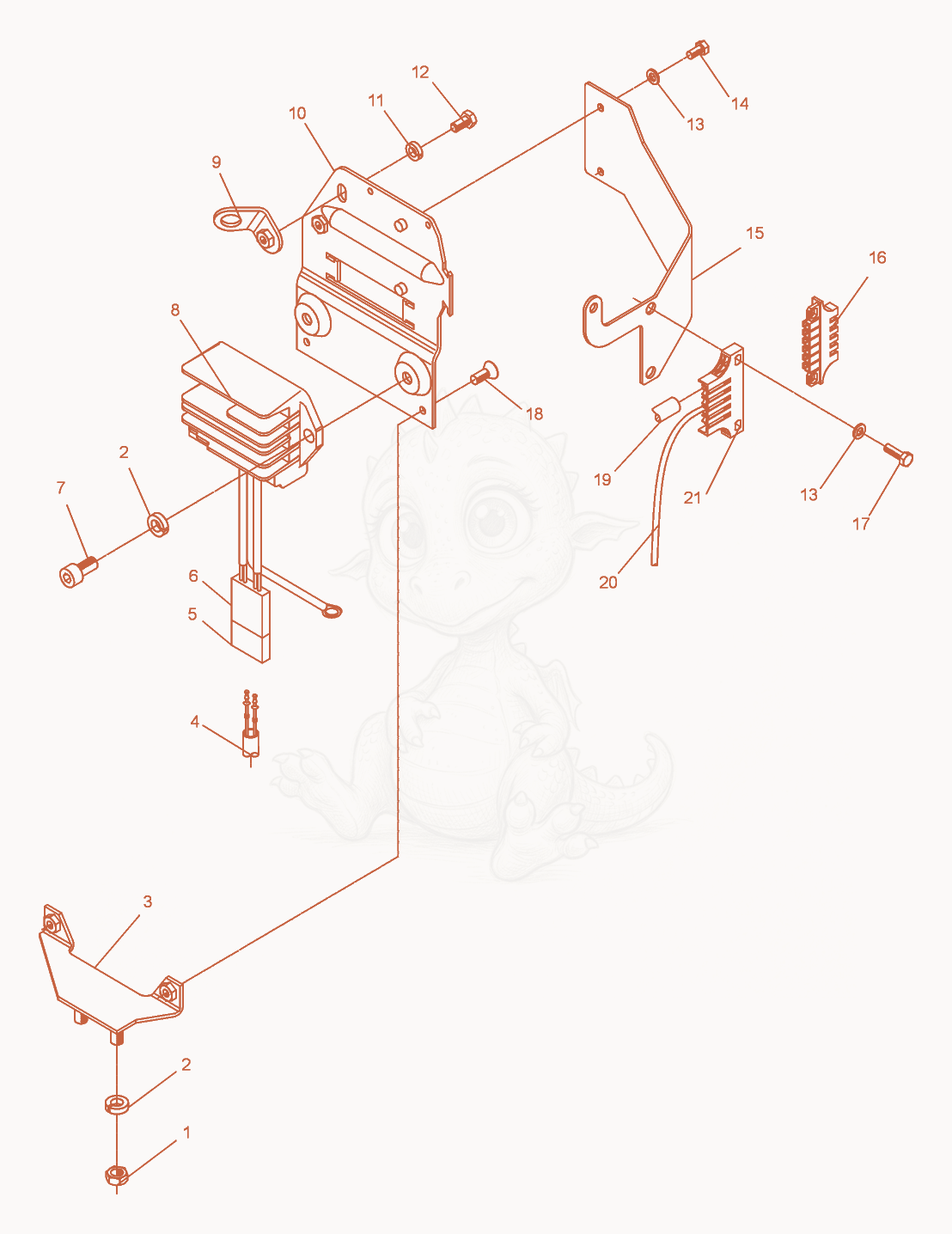

DPU6055 Regulator Diagram
- NUT M8 8,HEX - 5000010882×2
- WASHER-LOCK B8 - 5000012397×4
- HOLDER - 5000097591×1
- WIRE-ELECTRICAL - 5000097594×1
- PIN-BUSHING - 5000099522×1
- Plug - 5000102473×1
- SCREW M8 X 16 SOC.HD. - 5000011544×2
- 85000097589Not stockedRegulator×1
- Angle - 5000097593×1
- PLATE - 5000097592×1
- WASHER-LOCK B6 - 5000010649×1
- SCREW M6 X 12 HX.HD. - 5000012357×1
- WASHER B5.3 FLAT - 5000010625×4
- SCREW M5 X 12 HX.HD. - 5000011477×2
- Angle - 5000097595×1
- PLUG-PIN - 5000095073×1
- SCREW M5 X 16 HX.HD. - 5000011476×2
- SCREW M6 X 12 FLAT HD. - 5000013479×2
- CABLE - 5000102474×1
- CABLE-ELE. - 5000095075×1
- CONNECTOR-PIN - 5000095074×1
