DPU6055-VIBROPLATE

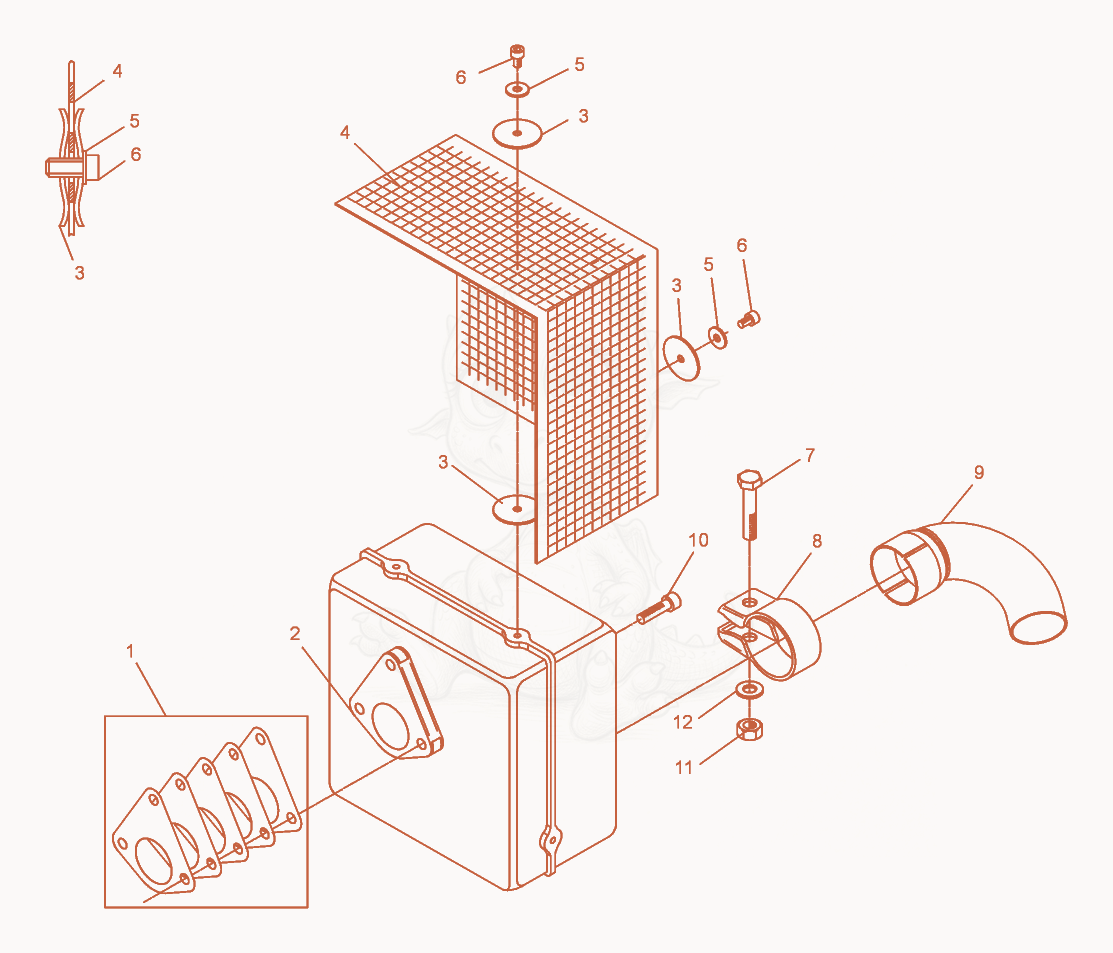

DPU6055 Muffler Diagram

Exploded parts diagram of the Muffler of a Wacker Neuson DPU6055, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000095096
    $25.00
    SET-ENGINE GASKETS (5-PER) - 5000095096×1
  • 25000095097Not stocked
    Muffler×1
  • 35000099525
    $8.06
    Washer - 5000099525×10
  • 45000095098
    $233.83
    GUARD-CONTACT - 5000095098×1
  • 55000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×5
  • 65000011554
    $0.13
    SCREW M6 X 12 SOC.HD. - 5000011554×5
  • 75000011320
    $1.51
    SCREW M10 X 50 HX.HD. - 5000011320×1
  • 85000095100
    $20.00
    Clamp - 5000095100×1
  • 95000126956
    $149.04
    TUBE-EXHAUST 115 DEG. - 5000126956×1
  • 105000011541
    $1.06
    SCREW M8 X 30 SOC.HD. - 5000011541×3
  • 115000017313
    $0.44
    NUT-LOCK M10 HEX. - 5000017313×1
  • 125000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×1
