DPU6055-VIBROPLATE

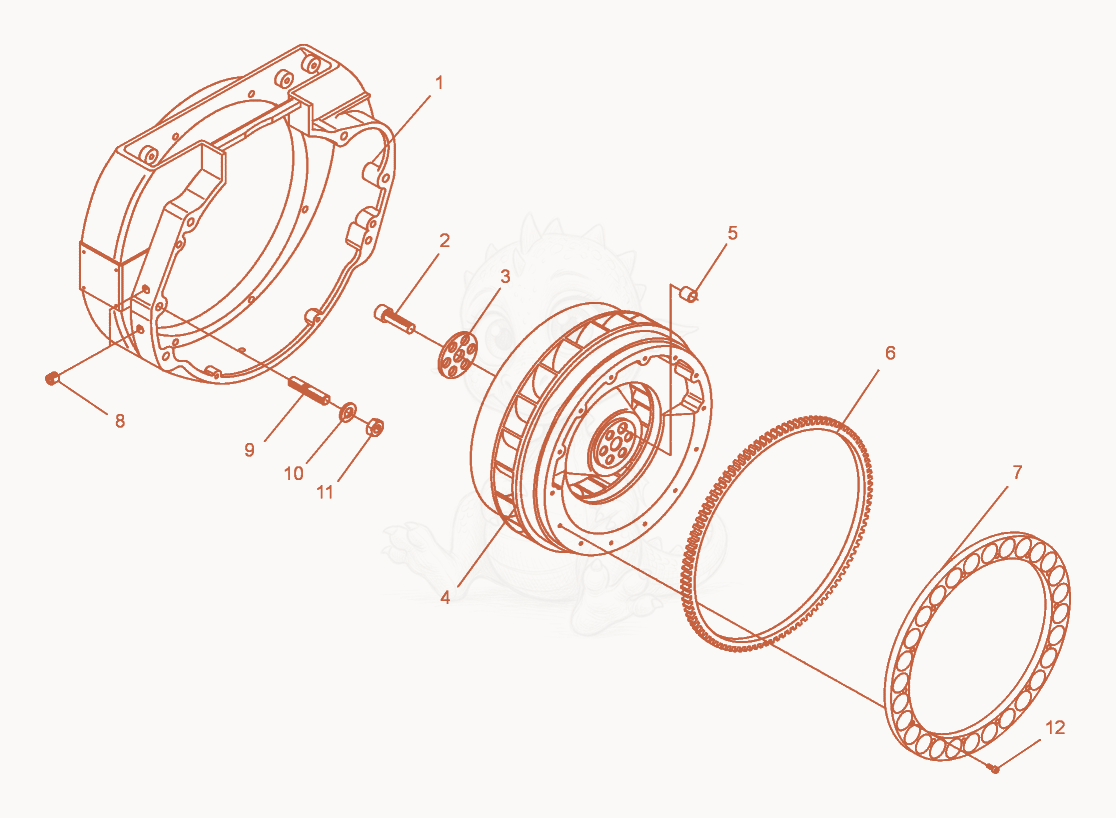

DPU6055 Fly Wheel Diagram
- HOUSING-COUPLING - 5000095042×1
- SCREW M12 X 1.5 SOC.HD. - 5000095046×6
- HOLDER-DISC - 5000095045×1
- FLYWHEEL - 5000097446×1
- SLEEVE - 5000095044×1
- GEAR-RING - 5000096597×1
- RING-MAGNET - 5000107224×1
- PLUG M12 X 1.5 - 5000011056×2
- STUD M12 X 35 - 5000010936×3
- STUD M12 X 40 - 5000010937×1
- WASHER B13 FLAT - 5000010620×1
- NUT M12 8,HEX - 5000010884×4
- SCREW M4 X 10 SHCS 8.8,ZINC - 5000011572×14
