DPU6055-VIBROPLATE

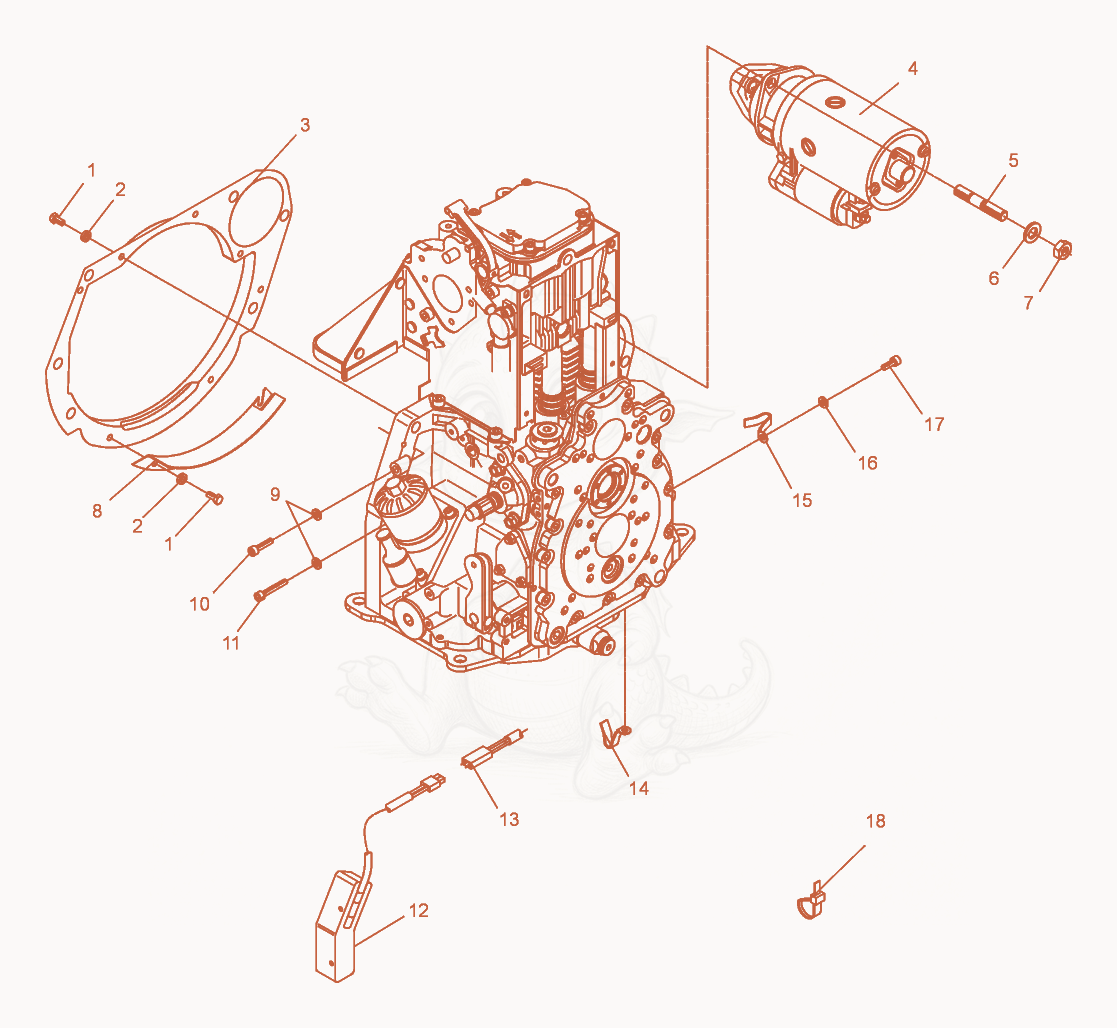

DPU6055 Starter Diagram
- SCREW M6 X 12 HX.HD. - 5000012357×5
- WASHER-LOCK B6 - 5000010649×5
- PLATE-BAFFLE - 5000095067×1
- STARTER COMPLETE 1D81 ONLY - 5000129769×1
- NLA STUD M12 X 50 - 5000095076×2
- WASHER B13 FLAT - 5000010620×1
- NUT - 5000097428×2
- PLATE-GUARD - 5000095068×1
- Washer - 5000099521×2
- SCREW M6X30 SOC.HD - 5000011268×1
- SCREW M6X40 - 5000011266×1
- Coil - 5000097588×1
- Plug - 5000102471×1
- Clamp - 5000102472×2
- Clamp - 5000097590×2
- WASHER B6.4 FLAT - 5000010624×1
- SCREW M6 X 16 SOC.HD. - 5000011553×1
- CABLE-TIE 4.0 X 130MM,NO MOUNT - 5000038489×9
