ET145

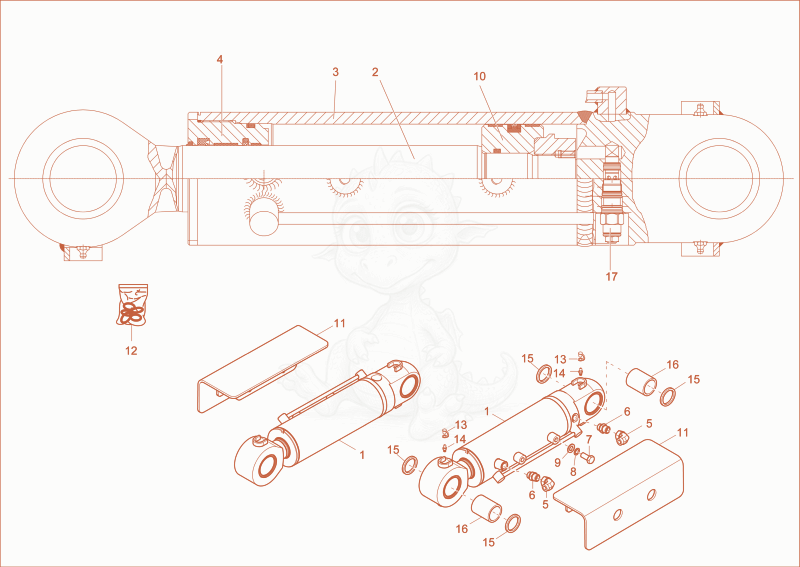

ET145 blade cylinder Diagram

Exploded parts diagram of the blade cylinder of a Wacker Neuson ET145, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000417071
    $2,398.37
    Blade Cylinder Et145 1000417071×1
  • 21000303926
    $1,390.21
    Pistonrod 1000303926×2
  • 31000303928
    $1,881.31
    Cylinderpipe 1000303928×2
  • 41000303929
    $257.33
    Guidebushing 1000303929×2
  • 51000015514Not stocked
    screw joint×4
  • 61000015497Not stocked
    screw joint×4
  • 71000047861Not stocked
    hex screw×4
  • 81000015439Not stocked
    lock washer×4
  • 91000021001
    $0.89
    WASHER - 1000021001×4
  • 101000303941Not stocked
    piston×2
  • 111000184887
    $676.24
    Dozerbladeramcover 1000184887×2
  • 121000302976
    $642.40
    SEAL KIT - 1000302976×2
  • 131000015480Not stocked
    cap grease nipple×4
  • 141000015476Not stocked
    grease nipple×4
  • 151000303930
    $90.13
    pin gasket - 1000303930×8
  • 161000303942
    $86.68
    BUSHING - 1000303942×4
  • 171000254559
    $468.55
    sinkbrake valve - 1000254559×2
