ET145

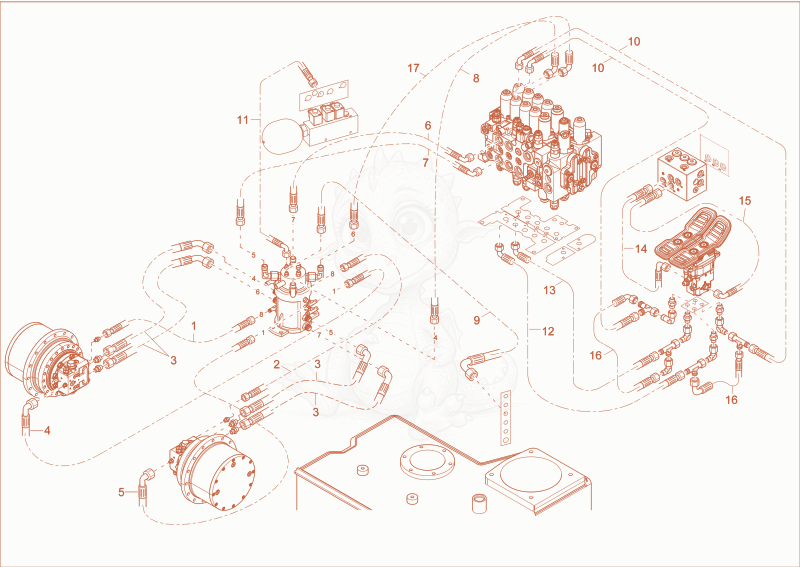

ET145 TRAVELLING GEAR INSTALLATION Diagram

Exploded parts diagram of the TRAVELLING GEAR INSTALLATION of a Wacker Neuson ET145, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000348517Not stocked
    Hose×1
  • 21000357706Not stocked
    Hose×1
  • 31000357701Not stocked
    Hose×4
  • 41000356951Not stocked
    Hose×1
  • 51000357708Not stocked
    Hose×1
  • 61000359009Not stocked
    Hose×1
  • 71000113846
    $126.23
    SLHYDR 4SP 16 PP20 90 PP20 0 L950,0 0 - 1000113846×2
  • 81000357710Not stocked
    Hose×1
  • 91000076929
    $46.00
    SLHYDR 1SC 10 PN12 90 PN12 0 L1300 0 - 1000076929×1
  • 101000076293
    $59.24
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2400 0 - 1000076293×2
  • 111000076538
    $13.51
    SLHYDR 1SCP6,0PN8 0 PN8 90 L800,0 0 - 1000076538×1
  • 121000358743Not stocked
    Hose×1
  • 131000076336
    $21.03
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2100 0 - 1000076336×1
  • 141000076393
    $14.67
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1400 0 - 1000076393×1
  • 151000077947
    $14.51
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1250 0 - 1000077947×1
  • 161000076339
    $15.09
    SLHYDR 1SCP6,0PN8 0 PN8 90 L300,0 0 - 1000076339×2
  • 171000359006Not stocked
    Hose×1
