ET145

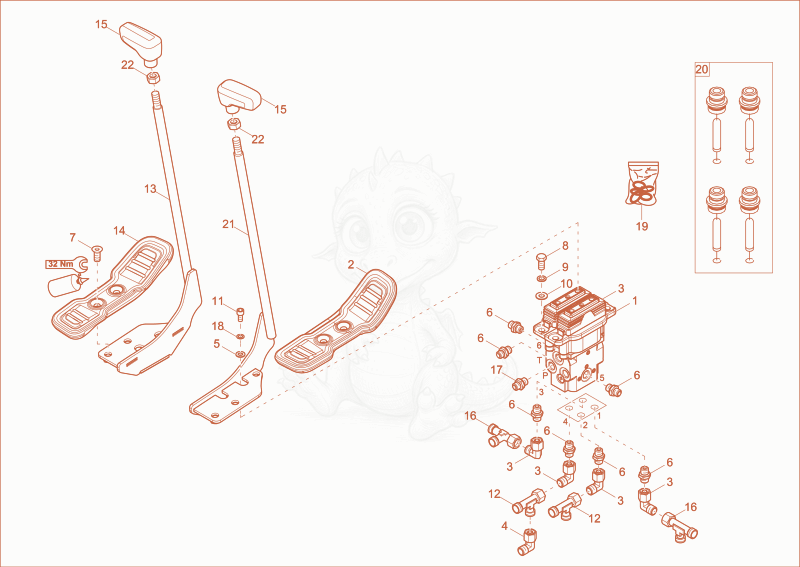

ET145 driving valve Diagram

Exploded parts diagram of the driving valve of a Wacker Neuson ET145, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000248841
    $1,285.69
    Pilotvalve 1000248841×1
  • 21000248662
    $321.37
    pedal - 1000248662×1
  • 31000000542
    $11.08
    EW08LOMD - 1000000542×4
  • 41000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 51000015431Not stocked
    washer×4
  • 61000082963
    $3.67
    GE08LR1/4OROMDA3C - 1000082963×7
  • 71000015397Not stocked
    countersunk screw×4
  • 81000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 91000015438Not stocked
    lock washer×4
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 111000085495
    $0.07
    cheese head screw M 8x16-8.8 A2C - 1000085495×4
  • 121000071464
    $109.13
    EVL8L DBHG:0,7MM - 1000071464×2
  • 131000342557
    $98.71
    shift lever - 1000342557×1
  • 141000248664
    $321.37
    pedal - 1000248664×1
  • 151000264042
    $31.12
    buttonhandle - 1000264042×2
  • 161000015515Not stocked
    screw joint×2
  • 171000471316Not stocked
    screw joint×1
  • 181000015437Not stocked
    lock washer×4
  • 191000256365Not stocked
    seal kit joystick×1
  • 201000063809Not stocked
    PLUNGER KIT×1
  • 211000342558
    $98.71
    shift lever - 1000342558×1
  • 221000015415Not stocked
    hexagon nut×2
