ET145

ET145 Powertilt (Option) Diagram

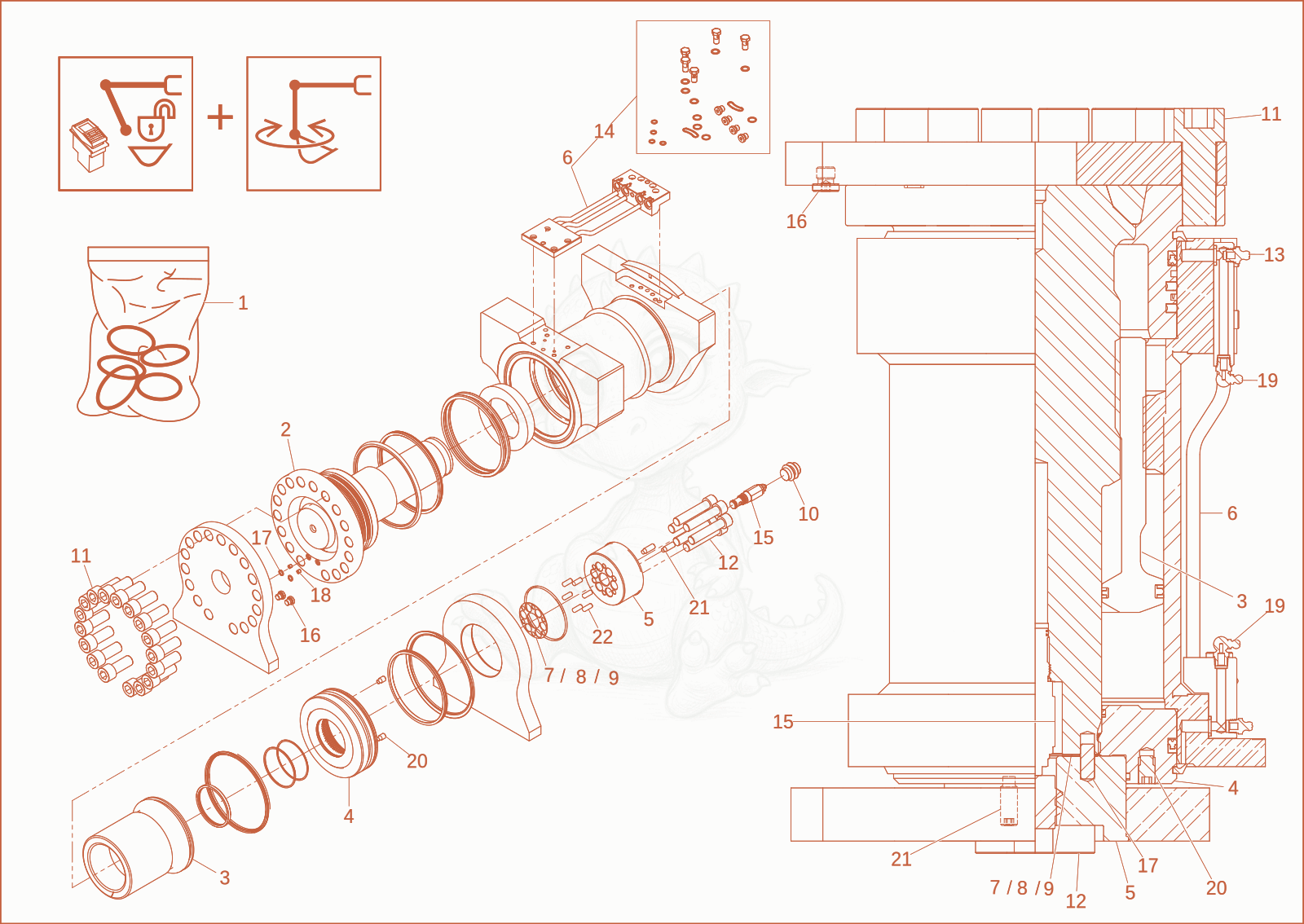

Exploded parts diagram of the Powertilt (Option) of a Wacker Neuson ET145, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000479823Not stocked
    seal kit×1
  • 21000479758Not stocked
    shaft×1
  • 31000479821Not stocked
    bellow×1
  • 41000479822Not stocked
    cap×1
  • 51000479759Not stocked
    hub×1
  • 61000496885Not stocked
    Kit×1
  • 71000479760Not stocked
    washer×1
  • 81000479800Not stocked
    washer×1
  • 91000479801Not stocked
    washer×1
  • 101000288025
    $40.81
    PLUG - 1000288025×1
  • 111000479802Not stocked
    screw×17
  • 121000479803
    $59.73
    screw - 1000479803×6
  • 131000479811Not stocked
    grease nipple×2
  • 141000496611
    $329.45
    Kit - 1000496611×1
  • 151000251511
    $994.75
    pressure limit reliefvalve - 1000251511×1
  • 161000251514Not stocked
    protecting cap×2
  • 171000479815Not stocked
    pin×4
  • 181000479916
    $13.70
    Plug - 1000479916×2
  • 191000479812Not stocked
    grease nipple×2
  • 201000479804
    $13.70
    screw - 1000479804×2
  • 211000479806Not stocked
    screw×2
