ET145

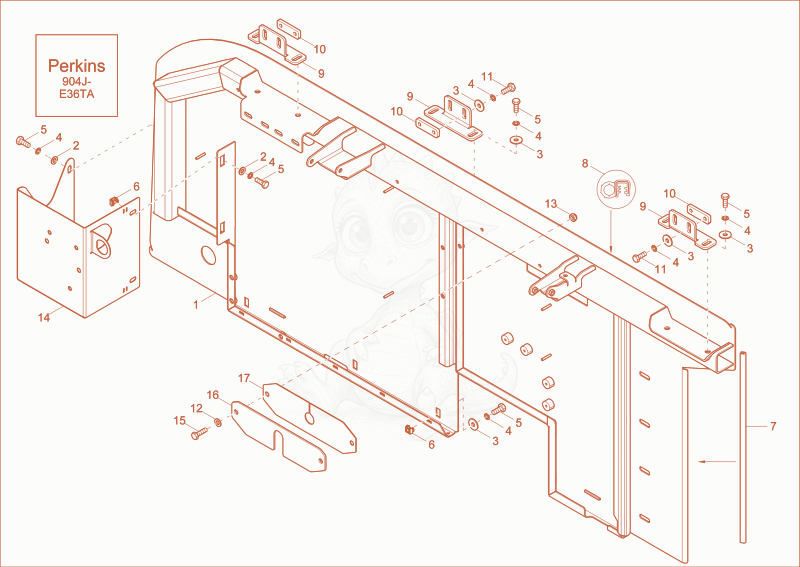

ET145 seperating plate (OPTION) Diagram

Exploded parts diagram of the seperating plate (OPTION) of a Wacker Neuson ET145, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000465676Not stocked
    seperating plate×1
  • 21000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×6
  • 31000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×21
  • 41000015438Not stocked
    lock washer×27
  • 51000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×19
  • 61000094958
    $1.08
    Korgmutter M10 1,8-3,2 - 1000094958×6
  • 71000098163
    $5.21
    edge protection - 1000098163×0.7
  • 81000098198
    $19.56
    RUBBER PROFILE - 1000098198×2.7
  • 91000181375
    $56.40
    hinge angle - 1000181375×3
  • 101000187994
    $36.72
    thread plate - 1000187994×3
  • 111000015364Not stocked
    hex screw×6
  • 121000094974
    $0.70
    washer M10-DIN134 - 1000094974×2
  • 131000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 141000355685Not stocked
    tools board×1
  • 151000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×2
  • 161000423325Not stocked
    bracket×1
  • 171000336439Not stocked
    rubber gasket×1
