EZ53

EZ53 undercarriage (OPTION) Diagram

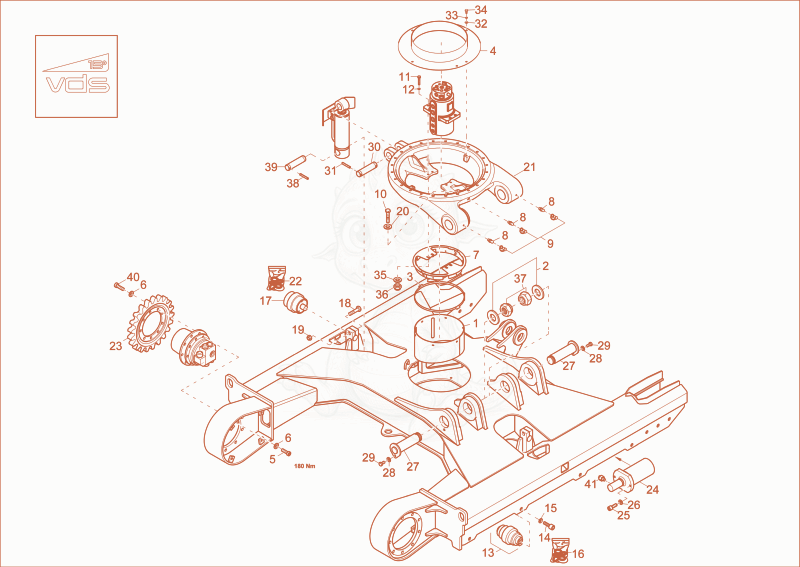

Exploded parts diagram of the undercarriage (OPTION) of a Wacker Neuson EZ53, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000267821
    $293.71
    rubber cover plate - 1000267821×1
  • 21000234563
    $10.85
    WASHER - 1000234563×2
  • 31000114834
    $7.44
    HOSE CLAMP - 1000114834×2
  • 41000233222
    $181.70
    Greasering 1000233222×1
  • 51000020189Not stocked
    cheese head screw×18
  • 61000015453Not stocked
    northlock disc×36
  • 71000239086
    $47.69
    fixing piece - 1000239086×2
  • 81000015476Not stocked
    grease nipple×3
  • 91000020783Not stocked
    cap grease nipple×3
  • 101000314676Not stocked
    screw×24
  • 111000047888Not stocked
    hex screw×4
  • 121000015449Not stocked
    northlock disc×4
  • 131000185722
    $232.19
    Roller 1000185722×8
  • 141000048307Not stocked
    cheese head screw×16
  • 151000015451Not stocked
    northlock disc×16
  • 161000074029
    $16.10
    SEAL KIT - 1000074029×8
  • 171000185723
    $260.10
    Supportroller 1000185723×2
  • 181000085371
    $2.36
    hex screw M16x70 - 1000085371×2
  • 191000020788Not stocked
    hexagon nut×2
  • 201000015451Not stocked
    northlock disc×24
  • 211000317411Not stocked
    tilt console×1
  • 221000185724
    $100.28
    SEAL KIT - 1000185724×1
  • 231000012604Not stocked
    drive wheel×2
  • 241000179926
    $355.87
    Tensioncylinder 1000179926×2
  • 251000085511
    $1.23
    cheese head screw M12x45 10.9Dacro500DIN - 1000085511×4
  • 261000082611
    $0.90
    washer 13 A2C DIN6916 - 1000082611×4
  • 271000234562
    $267.87
    Pin 1000234562×2
  • 281000082609
    $0.73
    lock washer - 1000082609×2
  • 291000015349Not stocked
    hex screw×2
  • 301000238732
    $86.42
    Pin 1000238732×1
  • 311000082714
    $1.24
    cotter pin - 1000082714×2
  • 321000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 331000015438Not stocked
    lock washer×4
  • 341000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 351000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 361000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 371000082572
    $11.95
    SET NUT - 1000082572×2
  • 381000021313Not stocked
    cotter pin×1
  • 391000234561
    $94.42
    Pin 1000234561×1
  • 401000020189Not stocked
    cheese head screw×18
  • 411000232922
    $48.39
    non return valve - 1000232922×2
