EZ53

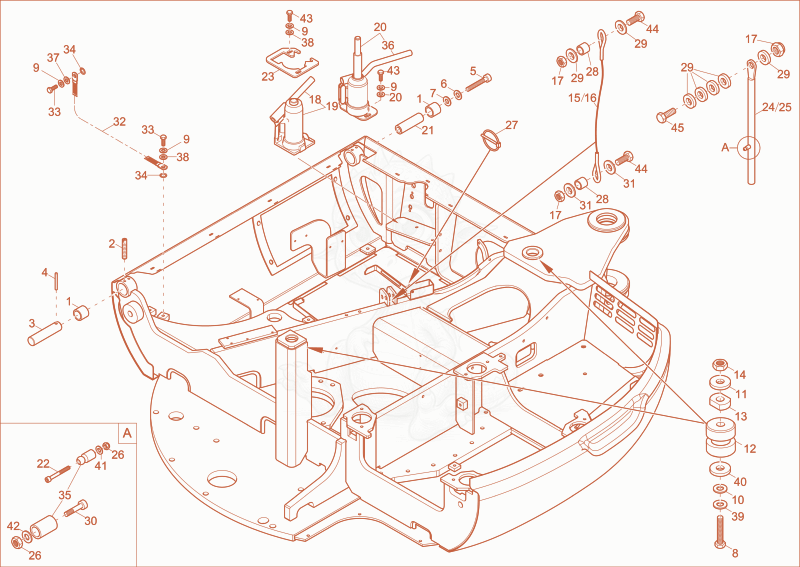

EZ53 CUSHION CABIN Diagram

Exploded parts diagram of the CUSHION CABIN of a Wacker Neuson EZ53, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000105024
    $118.92
    METAL- RUBBER BUSH - 1000105024×2
  • 21000082258
    $0.75
    thread pin - 1000082258×4
  • 31000109197
    $23.95
    PIN - 1000109197×1
  • 41000085646
    $0.12
    cotter pin - 1000085646×1
  • 51000085515
    $1.10
    cheese head screw - 1000085515×1
  • 61000082609
    $0.73
    lock washer - 1000082609×1
  • 71000049219Not stocked
    washer×1
  • 81000239665
    $3.66
    hex screw - 1000239665×2
  • 91000015438Not stocked
    lock washer×4
  • 101000021001
    $0.89
    WASHER - 1000021001×2
  • 111000239682
    $3.06
    washer - 1000239682×2
  • 121000239683
    $59.24
    rubber buffer - 1000239683×2
  • 131000239681
    $4.92
    shim - 1000239681×2
  • 141000146812
    $0.41
    HEXAGON NUT - 1000146812×2
  • 151000153102
    $63.14
    fasten rope - 1000153102×1
  • 161000246318
    $90.08
    fasten rope - 1000246318×1
  • 171000020127Not stocked
    hexagon nut×3
  • 181000288795
    $13.76
    rod - 1000288795×1
  • 191000285594
    $90.65
    Jack - 1000285594×1
  • 201000246431
    $2,002.96
    Jack 1000246431×1
  • 211000109198
    $52.93
    bushing - 1000109198×1
  • 221000082307
    $0.04
    BOLT M4x30 8.8 A2C-DIN912 - 1000082307×1
  • 231000285595
    $45.66
    fixing plate - 1000285595×1
  • 241000118057
    $39.77
    CAB SUPPORT - 1000118057×1
  • 251000246319
    $31.36
    CAB SUPPORT - 1000246319×1
  • 261000082547
    $0.88
    nut M4-8 A2C-DIN985 - 1000082547×2
  • 271000015457Not stocked
    cotter pin×1
  • 281000153104
    $13.41
    sleeve - 1000153104×1
  • 291000085610
    $0.43
    WASHER - 1000085610×7
  • 301000082474
    $0.80
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×1
  • 311000082638
    $0.73
    washer 13 -DIN134 - 1000082638×2
  • 321000072506
    $18.77
    earth strap - 1000072506×1
  • 331000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 341000095354
    $0.03
    Lock washer DIN6797 A10,5 - 1000095354×2
  • 351000118072
    $14.61
    METAL- RUBBER BUFFER - 1000118072×1
  • 361000246320
    $32.37
    rod - 1000246320×1
  • 371000013027Not stocked
    washer×1
  • 381000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 391000015439Not stocked
    lock washer×2
  • 401000239660
    $3.34
    shim - 1000239660×2
  • 411000119981
    $3.03
    washer 4,3 DIN9021 - 1000119981×1
  • 421000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×1
  • 431000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×2
  • 441000085370
    $1.35
    hex screw - 1000085370×2
  • 451000085373
    $1.51
    hex screw - 1000085373×1
