EZ53

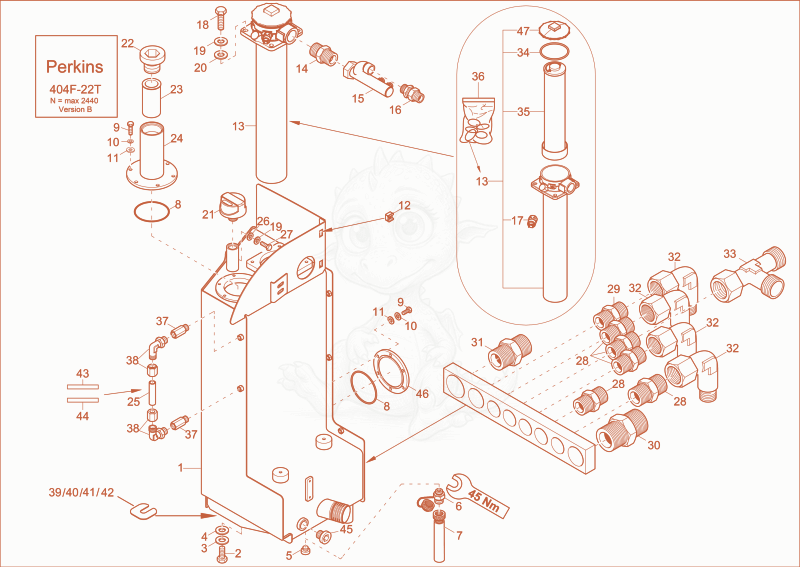

EZ53 hydraulic tank Diagram

Exploded parts diagram of the hydraulic tank of a Wacker Neuson EZ53, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000246309
    $3,110.18
    Oiltank 1000246309×1
  • 21000085370
    $1.35
    hex screw - 1000085370×3
  • 31000082609
    $0.73
    lock washer - 1000082609×3
  • 41000085610
    $0.43
    WASHER - 1000085610×3
  • 51000020797Not stocked
    screw joint×1
  • 61000322340Not stocked
    service valve×1
  • 71000272804
    $19.48
    SKARKE 4022G75 - 1000272804×1
  • 81000015679Not stocked
    o-ring×2
  • 91000013008Not stocked
    hex screw×12
  • 101000015437Not stocked
    lock washer×12
  • 111000015448Not stocked
    washer×12
  • 121000094956
    $1.05
    cage nut M10 3,3-4,7 - 1000094956×2
  • 131000252122
    $236.10
    Refluxfilter 1000252122×1
  • 141000082927
    $33.55
    GE35LREDOMDA3C - 1000082927×1
  • 151000167360
    $663.59
    manifold - 1000167360×1
  • 161000063849Not stocked
    non return valve×1
  • 171000182962
    $57.61
    switch hydraulic filter - 1000182962×1
  • 181000015348Not stocked
    hex screw×4
  • 191000015438Not stocked
    lock washer×5
  • 201000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 211000261957
    $33.36
    venting filter (0,2bar) - 1000261957×1
  • 221000116833
    $107.72
    VSTI2ORA3C - 1000116833×1
  • 231000142639
    $30.29
    oil screen - 1000142639×1
  • 241000139041
    $115.35
    Oiltankcap 1000139041×1
  • 251000116131
    $175.98
    pipe line - 1000116131×0.4
  • 261000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×1
  • 271000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×1
  • 281000015488Not stocked
    screw joint×5
  • 291000015489Not stocked
    screw joint×1
  • 301000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×1
  • 311000015493Not stocked
    screw joint×1
  • 321000000542
    $11.08
    EW08LOMD - 1000000542×4
  • 331000015515Not stocked
    screw joint×1
  • 341000109579
    $3.75
    O-RING - 1000109579×1
  • 351000126919
    $232.35
    filter cartridge - 1000126919×1
  • 361000109141
    $16.59
    seal kit - 1000109141×1
  • 371000020926Not stocked
    screw joint×2
  • 381000124024
    $39.49
    VERSCHRAUBUNG - 1000124024×2
  • 391000141773
    $32.48
    shim - 1000141773×2
  • 401000134431
    $3.28
    shim - 1000134431×1
  • 411000125638
    $7.33
    shim - 1000125638×2
  • 421000125639
    $9.00
    shim - 1000125639×1
  • 431000131144
    $15.38
    sticker marking - 1000131144×1
  • 441000131145
    $15.38
    sticker marking - 1000131145×1
  • 451000082787
    $19.16
    VSTI1EDA3C - 1000082787×1
  • 461000110090
    $235.48
    cleaning cover - 1000110090×1
  • 471000242082
    $143.73
    cover back flow filter - 1000242082×1
  • 481000013008Not stocked
    hex screw×6
  • 491000015448Not stocked
    washer×6
