EZ53

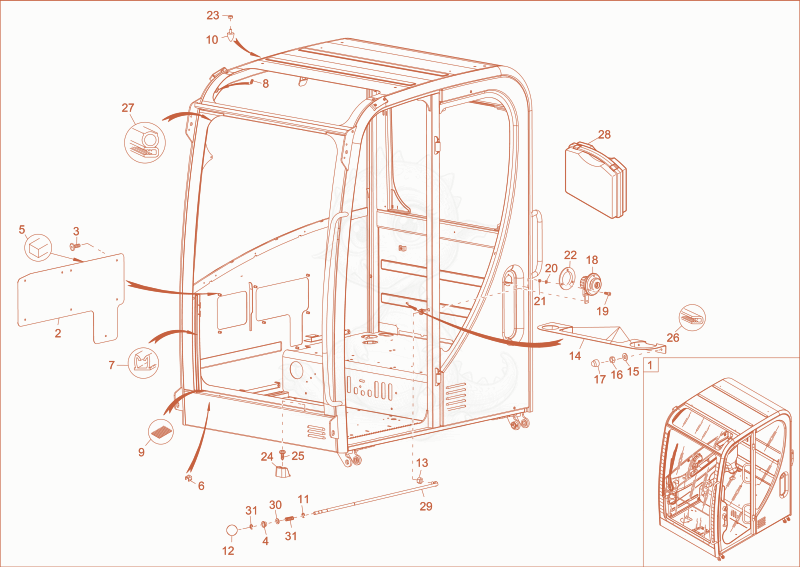

EZ53 CABIN FRAME 1 Diagram

Exploded parts diagram of the CABIN FRAME 1 of a Wacker Neuson EZ53, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000249515
    $27,987.71
    Cabin 1000249515×1
  • 21000124788
    $187.84
    Sidecover 1000124788×1
  • 31000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×7
  • 41000251804
    $19.86
    mounting - 1000251804×1
  • 51000124789
    $8.33
    Tesamol - 1000124789×2.1
  • 61000251957
    $1.19
    cage nut - 1000251957×1
  • 71000097236
    $49.36
    slide window seal - 1000097236×1
  • 81000152959
    $2.95
    thread pin - 1000152959×2
  • 91000097235
    $42.45
    seal strap - 1000097235×0.8
  • 101000245364
    $42.09
    RUBBER BUFFER - 1000245364×2
  • 111000049454Not stocked
    lock washer×2
  • 121000124794
    $26.95
    ball head - 1000124794×1
  • 131000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 141000248762
    $145.87
    Bottleholder 1000248762×1
  • 151000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
  • 161000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 171000073525
    $1.49
    cover cap - 1000073525×2
  • 181000124796
    $122.14
    door fastener - 1000124796×1
  • 191000124798
    $2.61
    ovalhead screw - 1000124798×3
  • 201000094967
    $0.65
    Washer M5,3-DIN134 - 1000094967×3
  • 211000085587
    $0.03
    HEXAGON NUT - 1000085587×3
  • 221000124797
    $11.44
    rubber disc - 1000124797×1
  • 231000015379Not stocked
    hexagon nut×2
  • 241000066203Not stocked
    clamp shoe×2
  • 251000015386Not stocked
    ovalhead screw×4
  • 261000068983Not stocked
    edge protection×1
  • 271000153158
    $48.82
    PROFILE - 1000153158×3.5
  • 281000110218
    $89.96
    documents box - 1000110218×1
  • 291000262257
    $91.03
    antilock rod - 1000262257×1
  • 301000015448Not stocked
    washer×1
  • 311000251799
    $18.78
    pressure spring - 1000251799×1
