EZ53

EZ53 swivel bucket cylinder QHS hydraulically Diagram

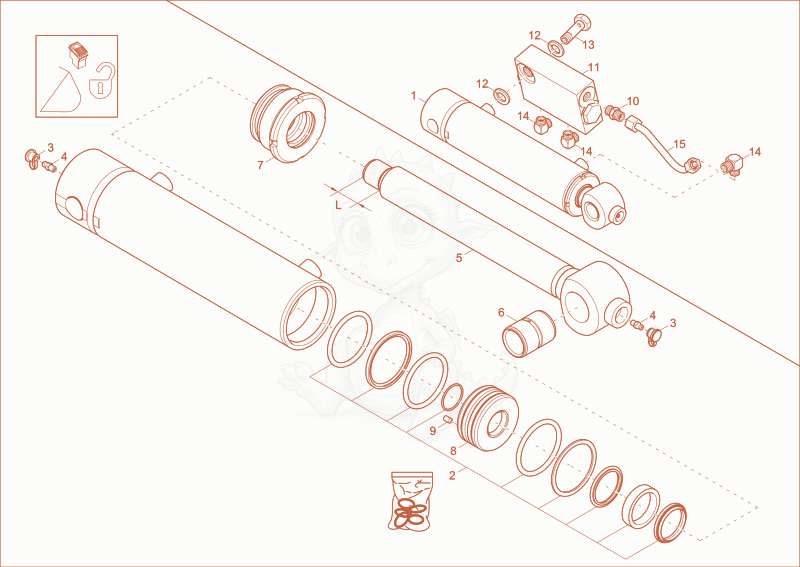

Exploded parts diagram of the swivel bucket cylinder QHS hydraulically of a Wacker Neuson EZ53, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000233806
    $912.63
    Swivelbucketcylinder 1000233806×1
  • 21000235498
    $138.27
    seal kit tilt bucket cyl. - 1000235498×1
  • 31000015480Not stocked
    cap grease nipple×2
  • 41000015475Not stocked
    grease nipple×2
  • 51000265241
    $687.84
    Pistonrod 1000265241×1
  • 61000083225Not stocked
    steel bushing×1
  • 71000265230
    $70.60
    guide bushing - 1000265230×1
  • 81000265242
    $130.13
    PISTON - 1000265242×1
  • 91000173845
    $2.61
    thread pin - 1000173845×1
  • 101000085114
    $3.58
    GE10LMEDOMDA3C - 1000085114×1
  • 111000130262
    $781.94
    non return valve - 1000130262×1
  • 121000089423
    $2.11
    seal ring - 1000089423×2
  • 131000089422
    $80.31
    Banjo bolt - 1000089422×1
  • 141000471589Not stocked
    screw joint×3
  • 151000264488
    $103.02
    pipe line - 1000264488×1
