EZ53

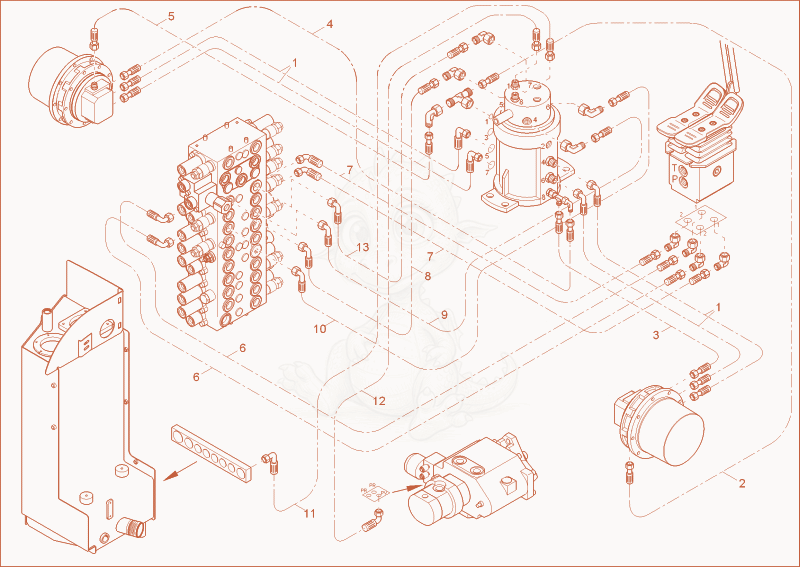

EZ53 TRAVELLING GEAR INSTALLATION Diagram

Exploded parts diagram of the TRAVELLING GEAR INSTALLATION of a Wacker Neuson EZ53, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000357074Not stocked
    Hose×4
  • 21000357078Not stocked
    Hose×1
  • 31000357075
    $110.26
    SLHYDR 492T6,0PN8 0 PN8 0 L1450 0 - 1000357075×1
  • 41000357076
    $30.94
    SLHYDR 492T6,0PN8 0 PN8 0 L1650 0 - 1000357076×1
  • 51000357077Not stocked
    Hose×1
  • 61000076665
    $21.37
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2900 0 - 1000076665×2
  • 71000076304
    $22.73
    SLHYDR 1SCP6,0PN8 0 PN8 90 L3200 0 - 1000076304×2
  • 81000355162Not stocked
    Hose×1
  • 91000111353
    $72.67
    SLHYDR 2SC+13 PN15 90 PN15 0 L1000 0 - 1000111353×1
  • 101000355161Not stocked
    Hose×1
  • 111000357067Not stocked
    Hose×1
  • 121000076465
    $34.60
    SLHYDR 1SC 6,0PN8 90 PN8 0 L1400 0 - 1000076465×1
  • 131000355163Not stocked
    Hose×1
