EZ53

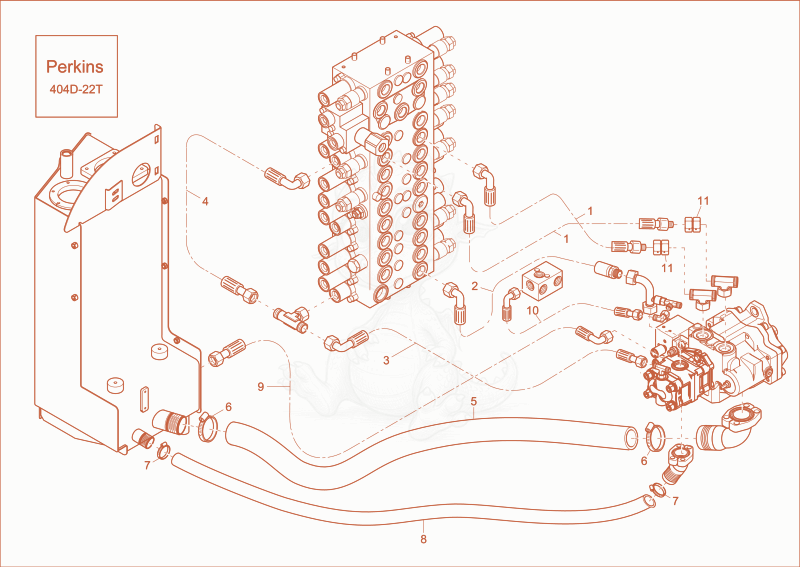

EZ53 HYDRAULIC PUMP INSTALLATION Diagram

Exploded parts diagram of the HYDRAULIC PUMP INSTALLATION of a Wacker Neuson EZ53, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000143418
    $197.08
    SLHYDR 4SP 16 PN18 90 PD18 0 L700,0 0 - 1000143418×2
  • 21000142825
    $193.64
    SLHYDR 4SP 16 PN18 90 PD18 0 L500,0 0 - 1000142825×1
  • 31000076662
    $11.02
    SLHYDR 1SCP6,0PN8 0 PN8 90 L600,0 0 - 1000076662×1
  • 41000076333
    $30.82
    SLHYDR 1SCP6,0PN8 0 PN8 90 L400,0 0 - 1000076333×1
  • 51000345246Not stocked
    suction hose×1
  • 61000241039
    $13.10
    clamp - 1000241039×2
  • 71000147051
    $8.87
    clamp - 1000147051×2
  • 81000341839Not stocked
    suction hose×1
  • 91000106499
    $33.13
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1400 0 - 1000106499×1
  • 101000117933
    $54.82
    SLHYDR 1SCP6,0PN8 0 PN8 90 L900,0 0 - 1000117933×1
  • 111000018398
    $21.62
    GZ18LA3C - 1000018398×2
