GN165 Generator,Standard

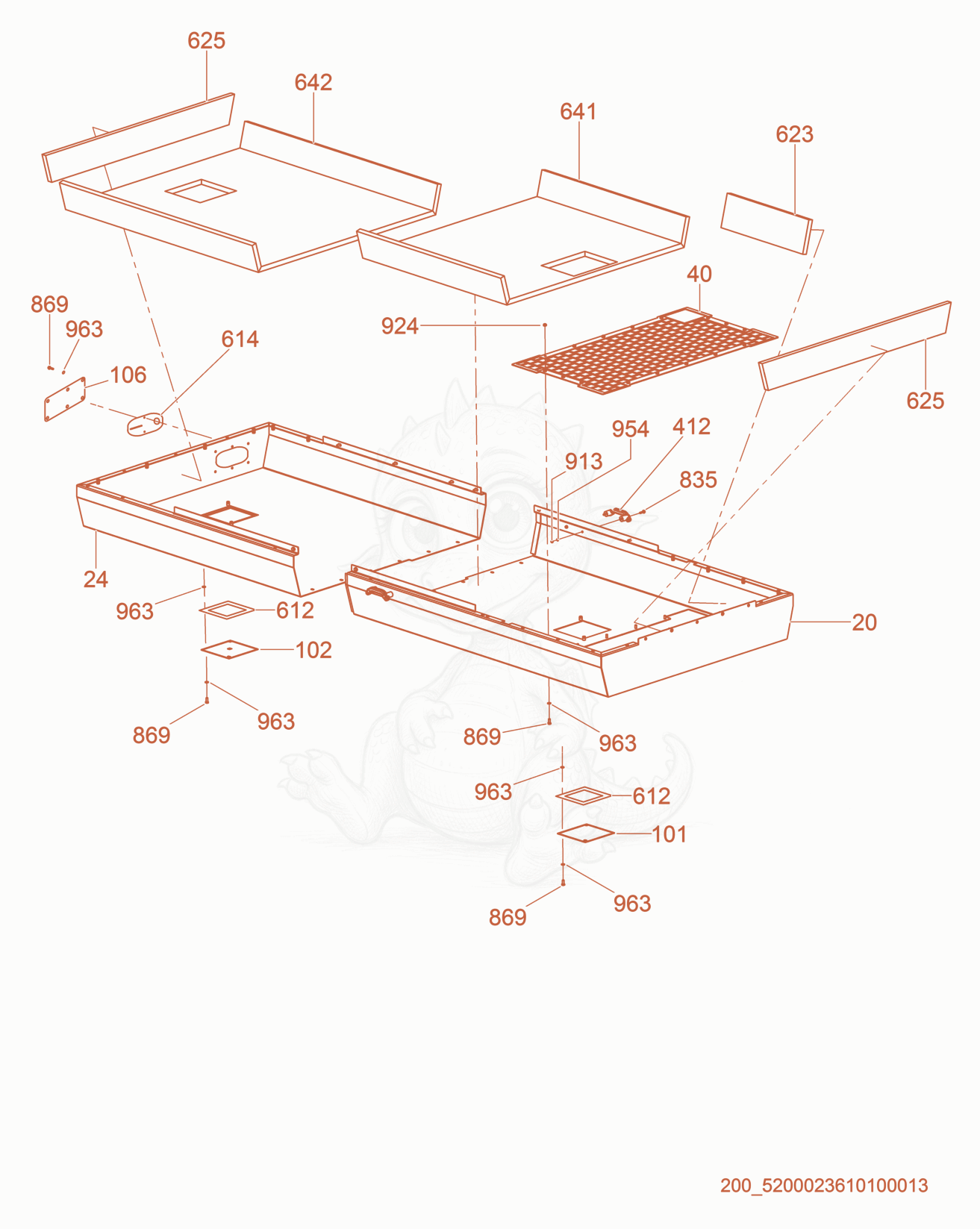

GN165 Roof Panel Diagram

Exploded parts diagram of the Roof Panel of a Wacker Neuson GN165, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205100022071
    $3,074.40
    PANEL-ROOF,FRT XL,MG,WLDMT,P-5100021100 - 5100022071×1
  • 245100022068
    $1,488.85
    PANEL-ROOF,REAR WLDMNT,XLC P-5100021100 - 5100022068×1
  • 405100022081
    $377.02
    PANEL-ROOF-GRATE LEFT CRNR P-5100021100 - 5100022081×1
  • 1015100020975
    $77.72
    PANEL-RADIATOR COVER, P-5100021100 - 5100020975×1
  • 1025100022079
    $29.62
    Panel-Mastertrak, ML/XL P-5100021100 - 5100022079×1
  • 1065100021913
    $21.69
    PANEL-TELEMATICS ACCESS P-5100021100 - 5100021913×1
  • 4125000117815
    $11.08
    HANDLE-PUMP - 5000117815×2
  • 6125000179156
    $14.12
    GASKET-RADIATOR COVER - 5000179156×2
  • 6145100015120
    $3.82
    GASKET- TELEMATICS PORT - 5100015120×1
  • 6235000164220
    $16.21
    INSULATOR-EXH COMP,SIDE FRONT - 5000164220×1
  • 6255000171500
    $42.28
    INSULATOR-EXHAUST COMP,FRT TOP - 5000171500×2
  • 6415000171499
    $282.61
    INSULATOR-ROOF,FRONT - 5000171499×1
  • 6425200022384Not stocked
    Insulator-roof, rear×1
  • 8355000154519
    $0.46
    SCREW M6X25 HX SER FLG CLR ZP - 5000154519×4
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×24
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×4
  • 9245000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×14
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×4
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×20
