GN165 Generator,Standard

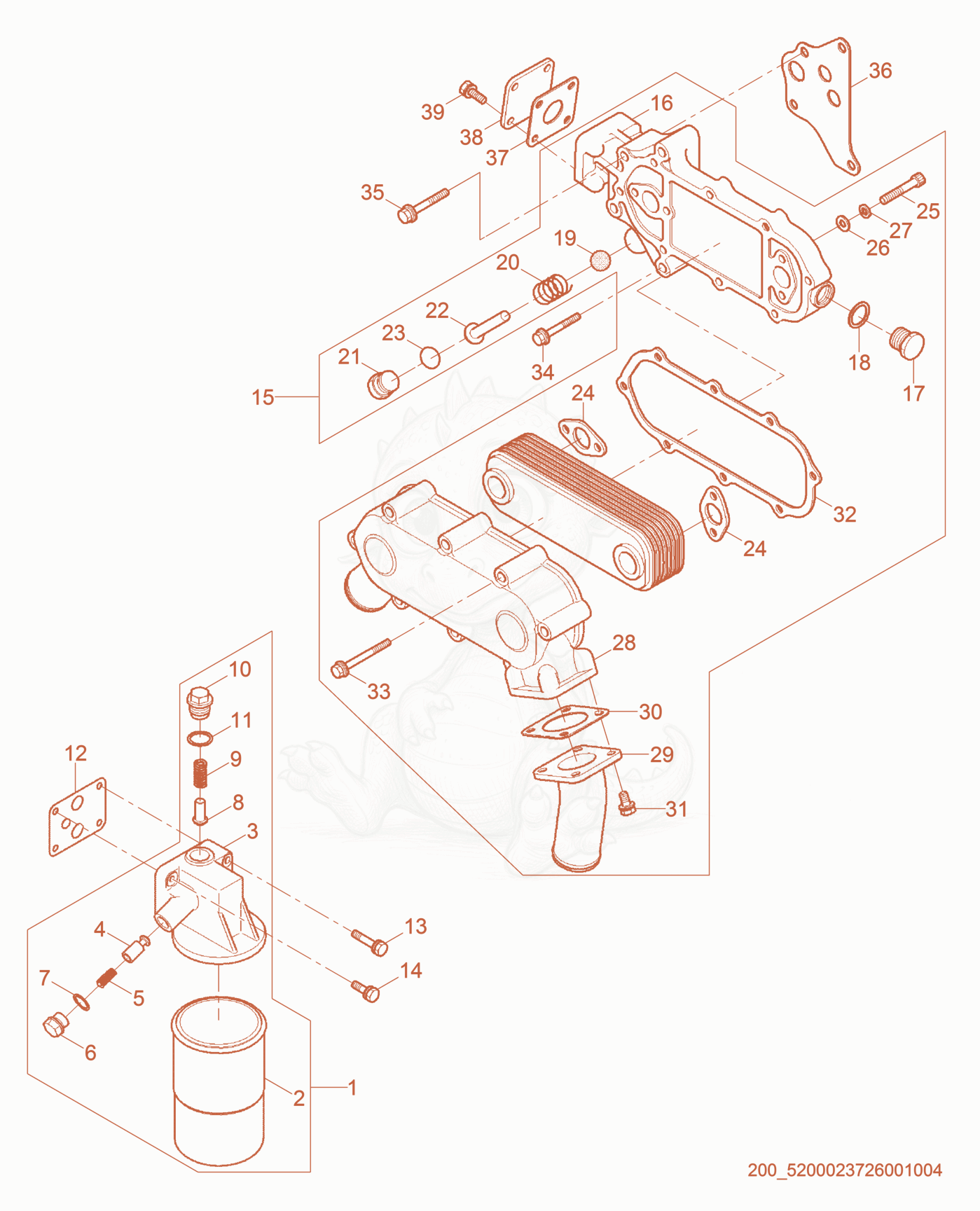

GN165 Oil Cooler / Filter Diagram

Exploded parts diagram of the Oil Cooler / Filter of a Wacker Neuson GN165, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100020628Not stocked
    Oil filter cpl.×1
  • 25100020629
    $64.93
    FILTER, OIL - 5100020629×1
  • 35100020630Not stocked
    Head cpl.×1
  • 45100020631Not stocked
    Valve×1
  • 55100020632Not stocked
    Spring×1
  • 65100020633Not stocked
    Screw plug×1
  • 75100020634Not stocked
    Ring seal×1
  • 85100020635Not stocked
    Valve×1
  • 95100020636Not stocked
    Spring×1
  • 105100020637Not stocked
    Screw plug×1
  • 115100020638Not stocked
    Ring seal×1
  • 125100020639Not stocked
    Oil filler gasket×1
  • 135100020640Not stocked
    Bolt assembly×2
  • 145100020641Not stocked
    Bolt assembly×2
  • 155100020642Not stocked
    Oil cooler cpl.×1
  • 165100020643Not stocked
    Housing×1
  • 175100020644Not stocked
    Screw plug×1
  • 185100020645Not stocked
    Ring seal×1
  • 195100020936Not stocked
    Ball×1
  • 205100020647Not stocked
    Spring×1
  • 215100020648Not stocked
    Screw plug×1
  • 225100020649Not stocked
    Pin×1
  • 235100020650Not stocked
    Ring seal×1
  • 245100020651Not stocked
    Gasket×2
  • 255100020652Not stocked
    Socket head bolt×4
  • 265100020653Not stocked
    Washer×4
  • 275100020654Not stocked
    Spring washer×4
  • 285100020655Not stocked
    Cover×1
  • 295100020656Not stocked
    Pipe×1
  • 305100020657Not stocked
    Gasket×1
  • 315100020658Not stocked
    Bolt assembly×4
  • 325100020659Not stocked
    Gasket×1
  • 335100020660Not stocked
    Bolt assembly×8
  • 345100020661Not stocked
    Bolt assembly×2
  • 355100020662Not stocked
    Bolt assembly×2
  • 365100020663Not stocked
    Gasket×1
  • 375100020664Not stocked
    Gasket×1
  • 385100020665Not stocked
    Blind cover×1
  • 395100020666Not stocked
    Bolt assembly×4
