GN165 Generator,Standard

GN165 Wiring harness Diagram

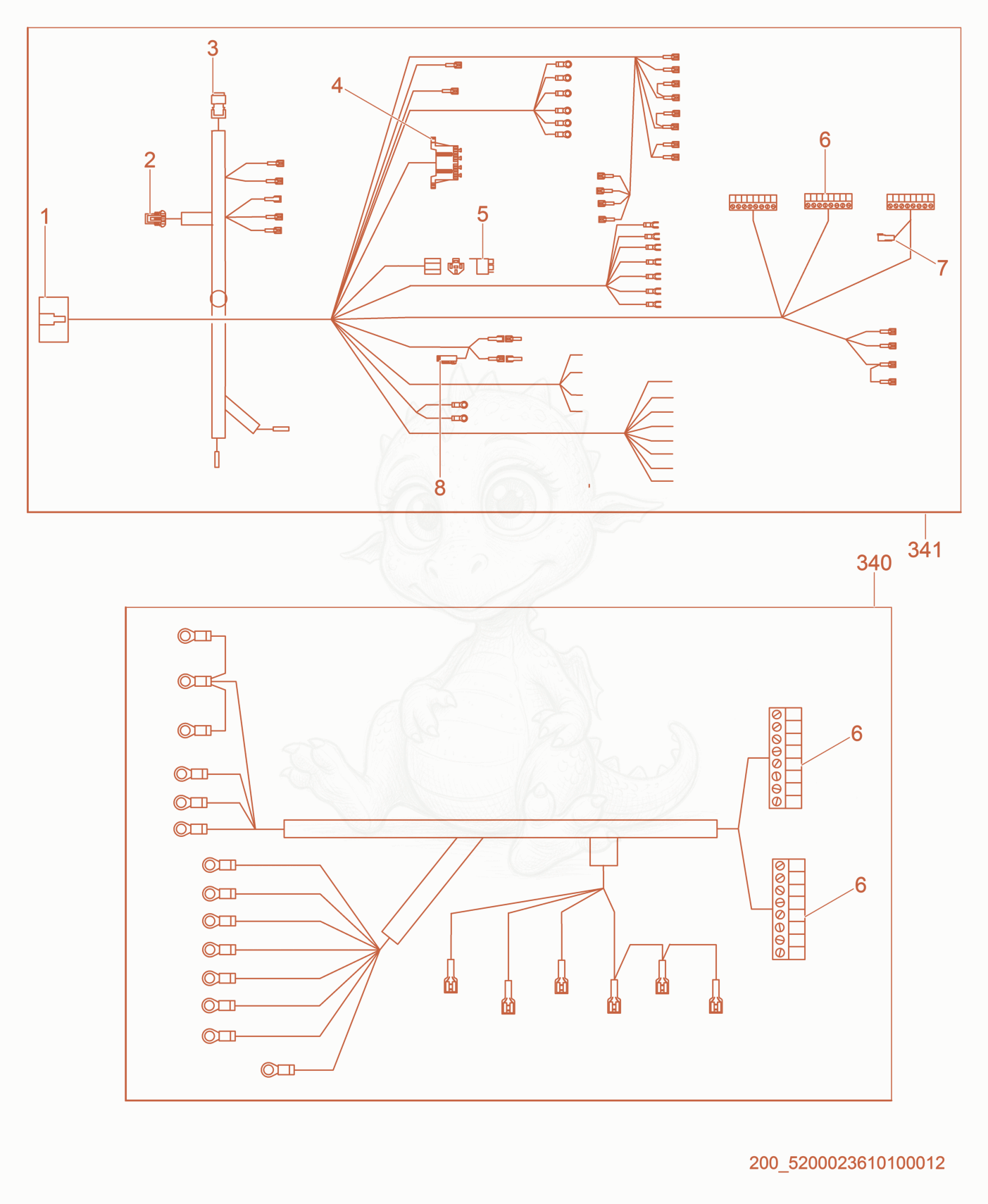

Exploded parts diagram of the Wiring harness of a Wacker Neuson GN165, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100018722
    $11.17
    Connector - 5100018722×1
  • 25100022448
    $2.76
    CONNECTOR-FEMALE, 2 PIN - 5100022448×1
  • 35100022449
    $10.79
    CONNECTOR - 5100022449×1
  • 45200019334Not stocked
    Fuse block×1
  • 55200012171Not stocked
    Relay×1
  • 65200018794Not stocked
    CONNECTOR×5
  • 75200024251Not stocked
    Connector×1
  • 85200014962Not stocked
    Diode×1
  • 3405200024549Not stocked
    Harness-AC, GN180×1
  • 3415200024322Not stocked
    Harness-DC, GN165×1
