GN165 Generator,Standard

GN165 Fuel System Diagram

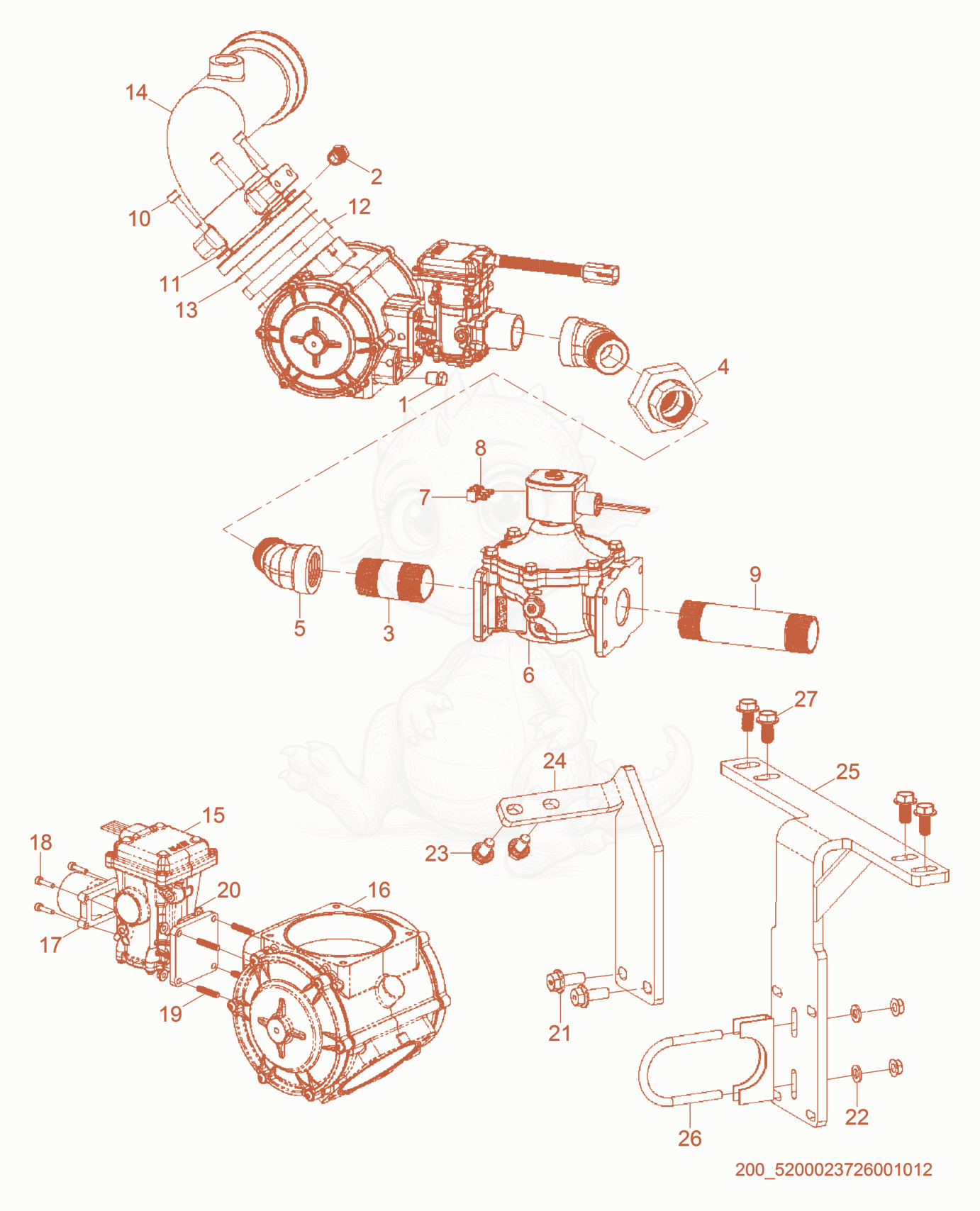

Exploded parts diagram of the Fuel System of a Wacker Neuson GN165, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100020904Not stocked
    Fitting×2
  • 25100020905Not stocked
    Fitting×1
  • 35100020906Not stocked
    Nipple×1
  • 45100020907Not stocked
    Union pipe×1
  • 55100020908Not stocked
    Elbow×2
  • 65100020909Not stocked
    Valve×1
  • 75100020910Not stocked
    Terminal×2
  • 85100020911Not stocked
    Terminal×1
  • 95100020912Not stocked
    Pipe×1
  • 105100020913Not stocked
    Bolt×4
  • 115100020915Not stocked
    Washer×4
  • 125100020917Not stocked
    Spacer×1
  • 135100020918Not stocked
    Gasket×1
  • 145100020919Not stocked
    Elbow×1
  • 155100020916Not stocked
    EPR×1
  • 165100020930Not stocked
    Mixer×1
  • 175100020931Not stocked
    Adaptor×1
  • 185100020932Not stocked
    Bolt×4
  • 195100020933Not stocked
    Stud×4
  • 205100020934Not stocked
    Nut×4
  • 215100020841Not stocked
    Bolt×2
  • 225100020833Not stocked
    Washer×2
  • 235100020835Not stocked
    Bolt×2
  • 245100020837Not stocked
    bracket×1
  • 255100020840Not stocked
    bracket×1
  • 265100020843Not stocked
    Bolt×1
  • 275100020844Not stocked
    Bolt×4
