GN165 Generator,Standard

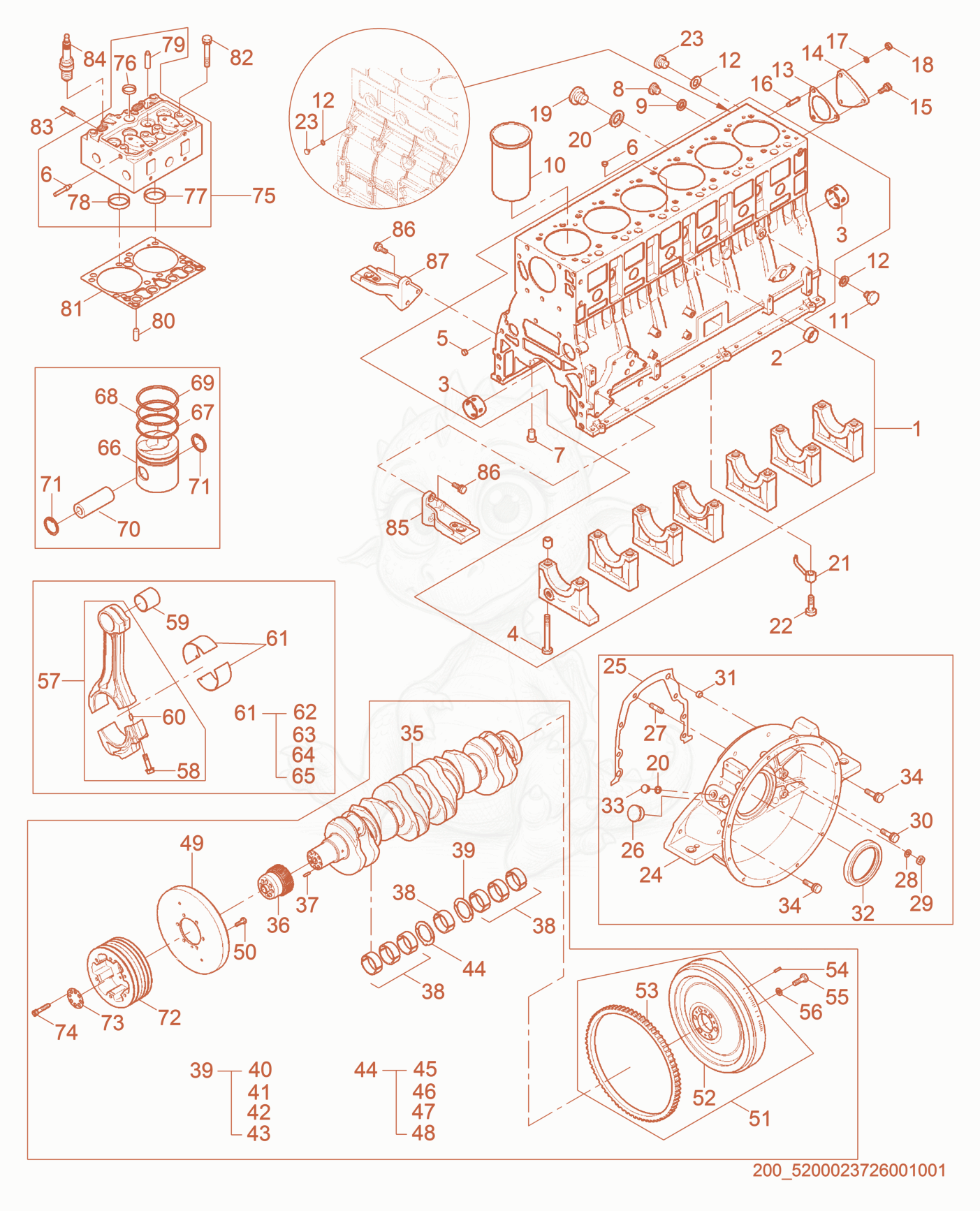

GN165 Cylinder block cpl. Diagram
- 15100020249Not stockedCylinder cpl.×1
- 25100020330Not stockedCore plug×9
- 35100020331Not stockedBushing×4
- 45100020332Not stockedBolt×14
- 55100020333Not stockedCore plug×2
- 65100020334Not stockedPin×4
- 75100020335Not stockedPlug×1
- 85100020336Not stockedScrew plug×2
- 95100020337Not stockedRing seal×2
- 105100020338Not stockedCylinder×6
- 115100020339Not stockedScrew plug×1
- 125100020340Not stockedRing seal×3
- 135100020341Not stockedGasket×1
- 145100020343Not stockedCover×1
- 155100020344Not stockedBolt assembly×2
- 165100020346Not stockedStud bolt×1
- 175100020347Not stockedWasher-spring×1
- 185100020348Not stockedHexagon nut×1
- 195100020349Not stockedScrew plug×1
- 205100021525Not stockedSeal×2
- 215100020361Not stockedNozzle jet×6
- 225100020362Not stockedRelief valve×6
- 235100020363Not stockedScrew plug×2
- 245100020379Not stockedFlywheel housing×1
- 255100020390Not stockedGasket×1
- 265100020391Not stockedPlug×1
- 275100020392Not stockedStud bolt×1
- 285100020393Not stockedSpring washer×1
- 295100020394Not stockedNut×1
- 305100020395Not stockedBolt assembly×5
- 315100020396Not stockedStopper×2
- 325100020397Not stockedSeal-oil×1
- 335100020398Not stockedScrew plug×1
- 345100020399Not stockedBolt assembly×2
- 355100020406Not stockedCrankshaft×1
- 365100020407Not stockedCrankshaft gear×1
- 375100020408Not stockedParallel pin×1
- 385100020409Not stockedBearing×7
- 395100020410Not stockedBearing×2
- 405100020411Not stockedBearing×1
- 415100020412Not stockedBearing×1
- 425100020413Not stockedBearing×1
- 435100020414Not stockedBearing×1
- 445100020415Not stockedBearing×2
- 455100020416Not stockedBearing×1
- 465100020417Not stockedBearing×1
- 475100020418Not stockedBearing×1
- 485100020419Not stockedBearing×1
- 495100020358Not stockeddamper×1
- 505100020359Not stockedBolt×6
- 515100020470Not stockedFlywheel compl.×1
- 525100020471Not stockedFlywheel×1
- 535100020472Not stockedStarter drive gear×1
- 545100020473Not stockedParallel pin×1
- 555100020474Not stockedBolt×6
- 565100020475Not stockedSpring washer×6
- 575100020476Not stockedConnecting rod×6
- 585100020478Not stockedBolt×2
- 595100020479Not stockedBush×1
- 605100020490Not stockedDowel pin×2
- 615100020491Not stockedConnecting rod bearing×6
- 625100020492Not stockedConnecting rod bearing×6
- 635100020493Not stockedConnecting rod bearing×6
- 645100020494Not stockedConnecting rod bearing×6
- 655100020495Not stockedConnecting rod bearing×6
- 665100020496Not stockedPiston×6
- 675100020497Not stockedRing×6
- 685100020498Not stockedRing×6
- 695100020499Not stockedRing×6
- 705100020500Not stockedPin×6
- 715100020501Not stockedRing×12
- 725100020502Not stockedV-belt pulley×1
- 735100020503Not stockedWasher×1
- 745100020504Not stockedScrew-socket head×8
- 755100020505Not stockedCylinder head×3
- 755100020506Not stockedCylinder head×3
- 765100020508Not stockedValve guide×4
- 775100020509Not stockedSeat-valve, exhaust×2
- 785100020510Not stockedSeat-valve, intake×2
- 795100020511Not stockedCore plug×7
- 805100020512Not stockedParallel pin×6
- 815100020513Not stockedCylinder head gasket×3
- 825100020514Not stockedBolt×24
- 835100020384Not stockedStud bolt×2
- spark plug - 5100020802×6
- 855100020803Not stockedBracket×1
- 865100020381Not stockedBolt assembly×6
- 875100020804Not stockedBracket×1
