GN165 Generator,Standard

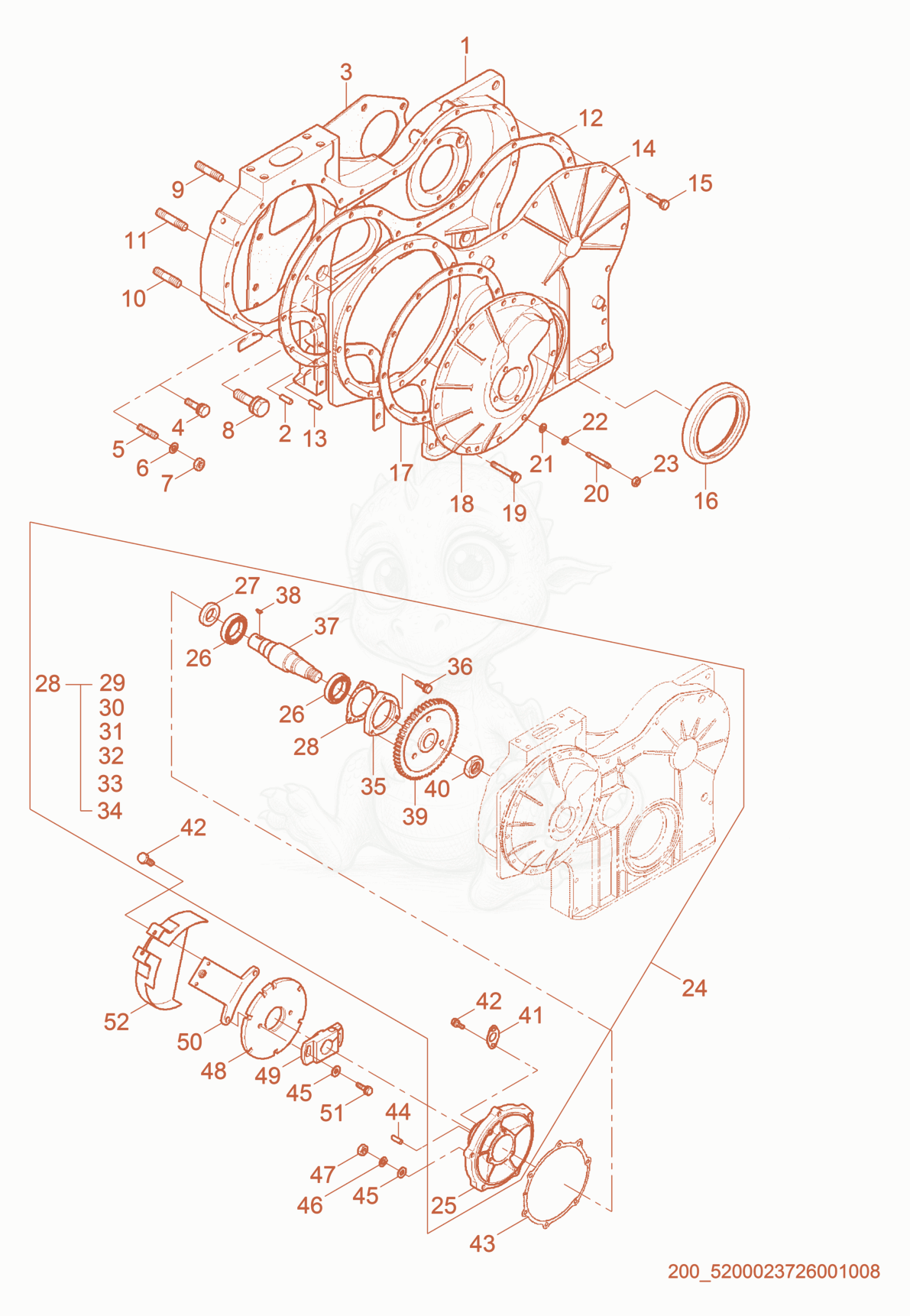

GN165 Injection Pump Diagram
- 15100020327Not stockedTiming Gear×1
- 25100020328Not stockedPin×2
- 35100020329Not stockedGasket×1
- 45100020380Not stockedBolt assembly×5
- 55100020346Not stockedStud bolt×1
- 65100020347Not stockedWasher-spring×1
- 75100020348Not stockedHexagon nut×1
- 85100020381Not stockedBolt assembly×4
- 95100020382Not stockedStud bolt×1
- 105100020384Not stockedStud bolt×4
- 115100020385Not stockedStud bolt×2
- 125100020386Not stockedGasket×1
- 135100020387Not stockedParallel pin×2
- 145100020388Not stockedCover×1
- 155100020389Not stockedBolt assembly×13
- 165100020371Not stockedSeal-oil×1
- 175100020372Not stockedGasket×1
- 185100020373Not stockedCover×1
- 195100020374Not stockedBolt assembly×9
- 205100020375Not stockedStud bolt×2
- 215100020376Not stockedWasher×2
- 225100020377Not stockedSpring washer×2
- 235100020378Not stockedNut×2
- 245100020558Not stockedInjection Pump Kit×1
- 255100020559Not stockedCover×1
- 265100020740Not stockedTapered roller bearing×2
- 275100020741Not stockedSeal-oil×1
- 285100020742Not stockedShim×1
- 295100020743Not stockedShim×1
- 305100020744Not stockedShim×1
- 315100020745Not stockedShim×1
- 325100020746Not stockedShim×1
- 335100020747Not stockedShim×1
- 345100020748Not stockedShim×1
- 355100020749Not stockedCover×1
- 365100020344Not stockedBolt assembly×3
- 375100020717Not stockedShaft×1
- 385100020718Not stockedWoodruff key×1
- 395100020719Not stockedGear×1
- 405100020760Not stockedlock nut×1
- 415100020761Not stockedFlange×1
- 425100020762Not stockedHex Bolt×9
- 435100020763Not stockedGasket×1
- 445100020764Not stockedSpring pin×1
- 455100020723Not stockedWasher×9
- 465100020578Not stockedSpring washer×7
- 475100020557Not stockedHexagon nut×7
- 485100020765Not stockedWheel×1
- 495100020766Not stockedAdapter cpl.×1
- 505100020767Not stockedBracket×1
- 515100020768Not stockedBolt assembly×2
- 525100020769Not stockedCover, Tachometer×1
