GN165 Generator,Standard

GN165 Oil Pump Diagram

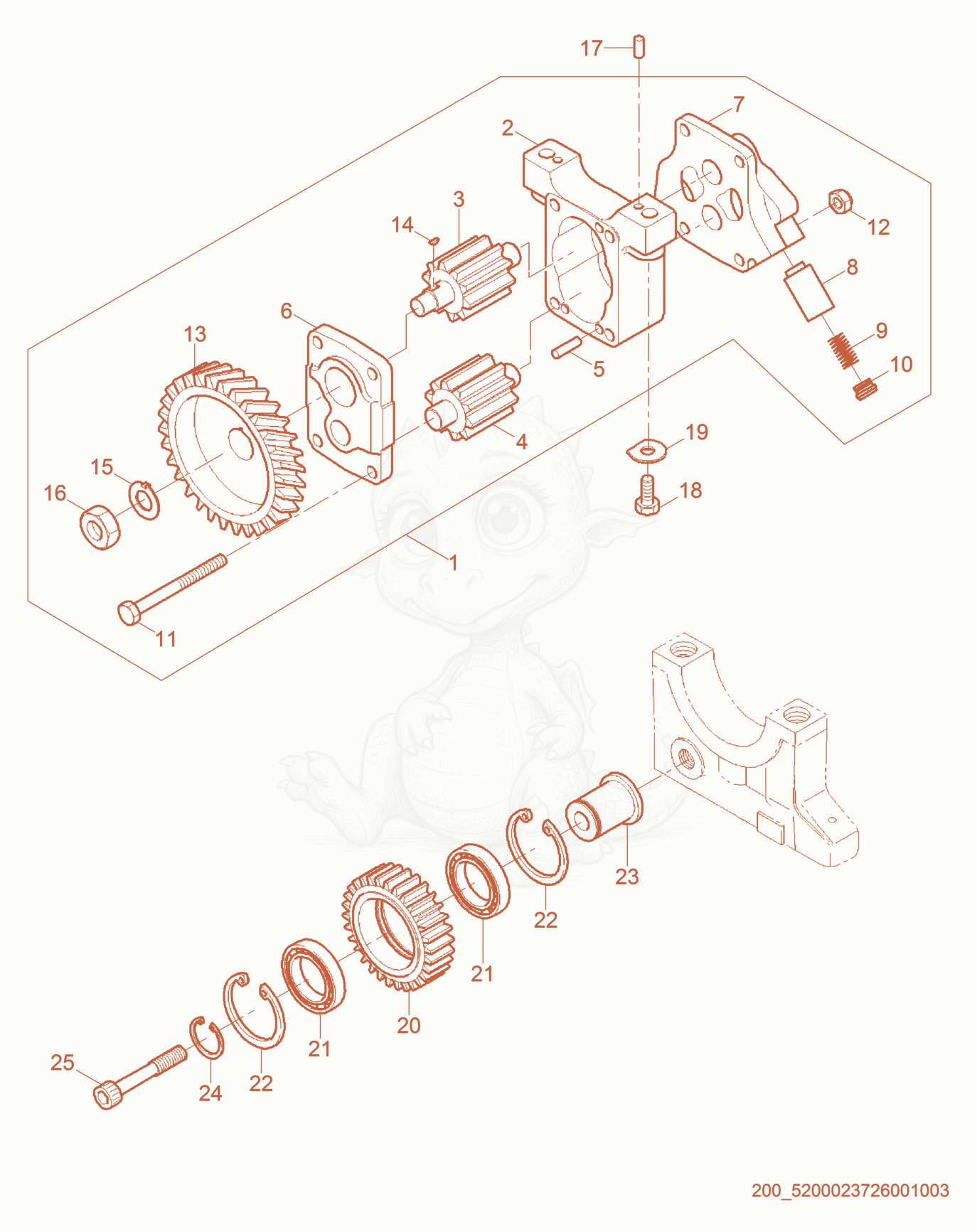

Exploded parts diagram of the Oil Pump of a Wacker Neuson GN165, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100020594Not stocked
    Oil pump cpl.×1
  • 25100020595Not stocked
    Oil pump cover×1
  • 35100020596Not stocked
    Gear cpl.×1
  • 45100020597Not stocked
    Gear cpl.×1
  • 55100020512Not stocked
    Parallel pin×1
  • 65100020598Not stocked
    Cover cpl.×1
  • 75100020599Not stocked
    Cover cpl.×1
  • 85100020601Not stocked
    Valve×1
  • 95100020602Not stocked
    Valve spring×1
  • 105100020603Not stocked
    Screw plug×1
  • 115100020604Not stocked
    Bolt×4
  • 125100020605Not stocked
    Nut×4
  • 135100020606Not stocked
    Gear×1
  • 145100020607Not stocked
    Woodruff key×1
  • 155100020608Not stocked
    Lock washer×1
  • 165100020609Not stocked
    Nut×1
  • 175100020387Not stocked
    Parallel pin×2
  • 185100020620Not stocked
    Bolt×2
  • 195100020621Not stocked
    Lock washer×2
  • 205100020622Not stocked
    Gear×1
  • 215100020623Not stocked
    Ball bearing×2
  • 225100020624Not stocked
    Snap ring×2
  • 235100020625Not stocked
    Pin×1
  • 245100020626Not stocked
    Snap ring×1
  • 255100020627Not stocked
    Socket head bolt×1
