GN165 Generator,Standard

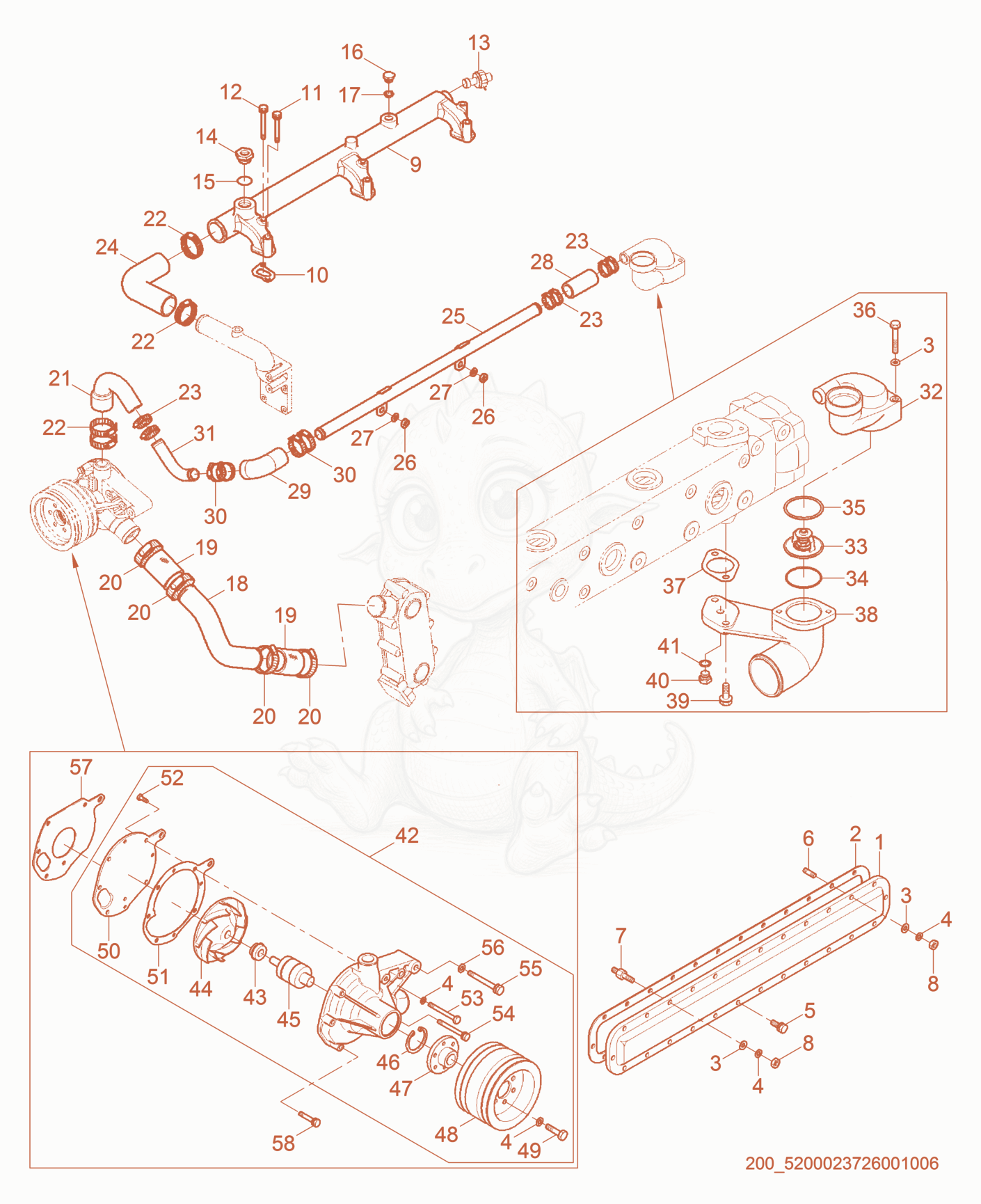

GN165 Thermostat Diagram

Exploded parts diagram of the Thermostat of a Wacker Neuson GN165, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100020400Not stocked
    Cover×1
  • 25100020401Not stocked
    Gasket×1
  • 35100020402Not stocked
    Washer×14
  • 45100020347Not stocked
    Washer-spring×19
  • 55100020403Not stocked
    Bolt assembly×14
  • 65100020404Not stocked
    Stud bolt×10
  • 75100020405Not stocked
    Bolt spacer×2
  • 85100020348Not stocked
    Hexagon nut×12
  • 95100020688Not stocked
    Pipe×1
  • 105100020689Not stocked
    Gasket×3
  • 115100020671Not stocked
    Bolt assembly×3
  • 125100020700Not stocked
    Bolt assembly×3
  • 135100020701
    $68.70
    COOLANT SENSOR - 5100020701×1
  • 145100020702Not stocked
    Screw plug×1
  • 155100020650Not stocked
    Ring seal×1
  • 165100020668Not stocked
    Screw plug×1
  • 175100020703Not stocked
    Ring seal×1
  • 185100020704Not stocked
    Rohr×1
  • 195100020705Not stocked
    Hose×2
  • 205100020706Not stocked
    Hose clamp×4
  • 215100020707Not stocked
    Rubber hose×1
  • 225100020708Not stocked
    Hose clamp×4
  • 235100020709Not stocked
    Hose clamp×6
  • 245100020720Not stocked
    Rubber hose×1
  • 255100020721Not stocked
    Pipe×1
  • 265100020722Not stocked
    Nut×2
  • 275100020723Not stocked
    Washer×2
  • 285100020724Not stocked
    Hose×1
  • 295100020725Not stocked
    Rubber hose×1
  • 305100020726Not stocked
    Hose clamp×4
  • 315100020727Not stocked
    Pipe×1
  • 325100020728Not stocked
    Housing×1
  • 335100020729
    $52.47
    THERMOSTAT ASSY - 5100020729Unknown×1
  • 335100020730Not stocked
    Thermostat cpl.×1
  • 335100020731Not stocked
    Thermostat cpl.×1
  • 345100020732
    $3.45
    O-RING - 5100020732×1
  • 355100020788
    $4.88
    GASKET, THERMOSTAT - 5100020788×1
  • 365100020640Not stocked
    Bolt assembly×2
  • 375100020733Not stocked
    Gasket×1
  • 385100020734Not stocked
    Pipe×1
  • 395100020735Not stocked
    Bolt assembly×2
  • 405100020736Not stocked
    Screw plug×1
  • 415100020737Not stocked
    Ring seal×1
  • 425100020738Not stocked
    Water pump cpl.×1
  • 435100020739Not stocked
    Mechanical seal×1
  • 445100020751Not stocked
    Impeller×1
  • 455100020752Not stocked
    Ball bearing×1
  • 465100020624Not stocked
    Snap ring×1
  • 475100020753Not stocked
    Hub×1
  • 485100020754Not stocked
    V-belt pulley×1
  • 495100020755Not stocked
    Bolt×6
  • 505100020756Not stocked
    Cover×1
  • 515100020757Not stocked
    Gasket×1
  • 525100020758Not stocked
    Bolt×3
  • 535100020759Not stocked
    Bolt×1
  • 545100020770Not stocked
    Bolt assembly×1
  • 555100020771Not stocked
    Bolt×1
  • 565100020578Not stocked
    Spring washer×1
  • 575100020772Not stocked
    Gasket×1
  • 585100020773Not stocked
    Bolt assembly×3
