WN Excavator 2003

2003 GRAB EQUIPMENT (OPTION) Diagram

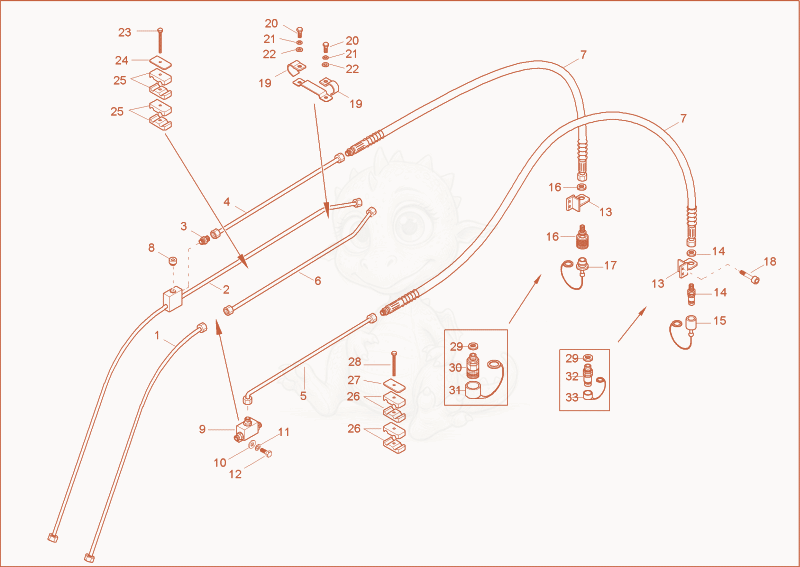

Exploded parts diagram of the GRAB EQUIPMENT (OPTION) of a Wacker Neuson 2003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000104274Not stocked
    pipe line×1
  • 21000104273Not stocked
    pipe line×1
  • 31000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×1
  • 41000067225Not stocked
    pipe line×1
  • 51000067222Not stocked
    pipe line×1
  • 61000067221Not stocked
    pipe line×1
  • 71000077137Not stocked
    Hose×2
  • 81000020797Not stocked
    screw joint×1
  • 91000069312Not stocked
    ball valve×1
  • 101000015430Not stocked
    washer×2
  • 111000015436Not stocked
    lock washer×2
  • 121000018400Not stocked
    hex screw×2
  • 131000066406
    $10.38
    BRACKET - 1000066406×2
  • 141000015088Not stocked
    quick lock coupling×1
  • 151000002993Not stocked
    protecting cap×1
  • 161000021083Not stocked
    quick lock coupling×1
  • 171000002992Not stocked
    protecting cap×1
  • 181000082424
    $0.85
    cheese head screw M8x65 8.8 DIN912 A2C - 1000082424×4
  • 191000066409Not stocked
    hose clamp×2
  • 201000015343Not stocked
    hex screw×2
  • 211000015437Not stocked
    lock washer×2
  • 221000015431Not stocked
    washer×2
  • 231000085387
    $0.78
    HEX SCREW - 1000085387×1
  • 241000015628Not stocked
    cover plate×1
  • 251000015626Not stocked
    clamp body×4
  • 261000083255
    $4.42
    CLAMP BODY - 1000083255×4
  • 271000022379Not stocked
    cover plate×1
  • 281000015402
    $1.94
    hex screw - 1000015402×1
  • 291000144282Not stocked
    counter nut×2
  • 301000109277Not stocked
    quick lock coupling×1
  • 311000109417
    $10.12
    Protection cap - 1000109417×1
  • 321000109276Not stocked
    quick lock coupling×1
  • 331000109416
    $8.43
    Protection cap - 1000109416×1
