WN Excavator 2003

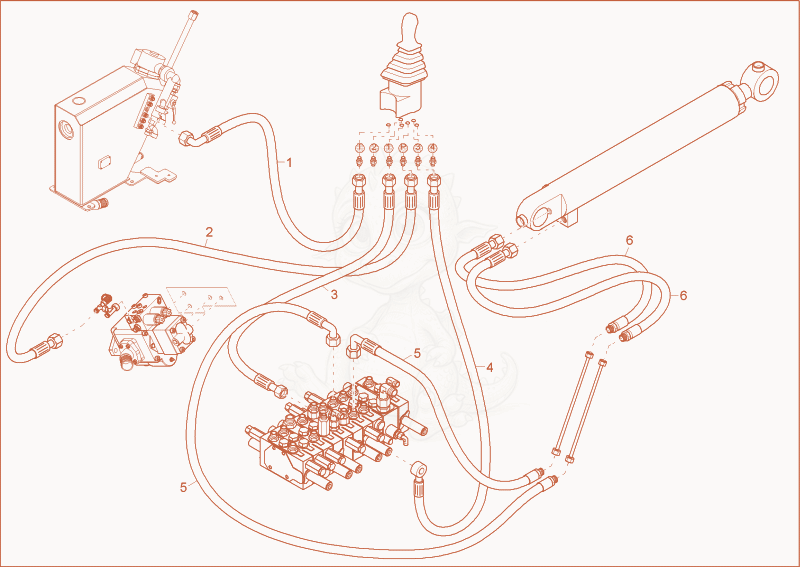

2003 DIPPER ARM OPERATION Diagram

Exploded parts diagram of the DIPPER ARM OPERATION of a Wacker Neuson 2003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000021508Not stocked
    Hose×1
  • 21000076311
    $13.13
    SLHYDR 1SCP6,0PN8 0 PN8 0 L1200 0 - 1000076311×1
  • 31000076623
    $33.35
    SLHYDR 1SCP6,0PN8 0 PN8 0 L1500 0 - 1000076623×1
  • 41000106406Not stocked
    Hose×1
  • 51000108245Not stocked
    Hose×2
  • 61000020274Not stocked
    Hose×2
