2003 LIFTING BOOM CYLINDER (OPTION) Diagram

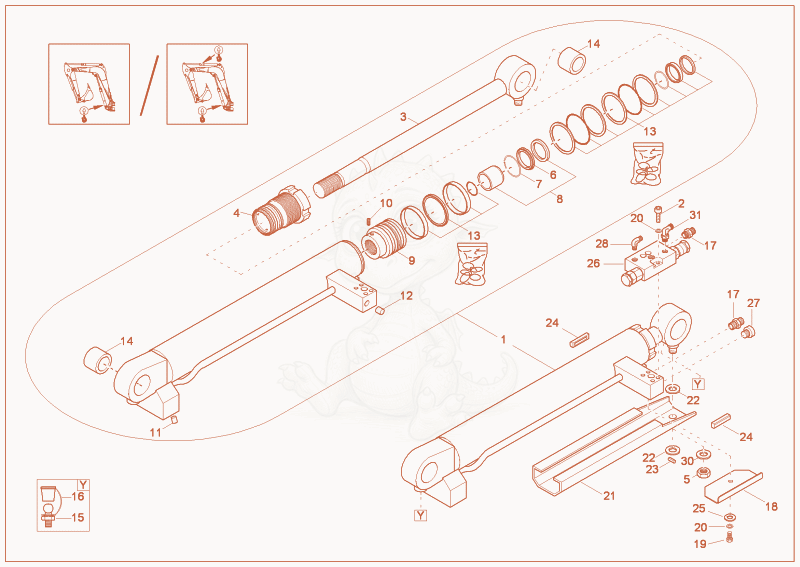

Exploded parts diagram of the LIFTING BOOM CYLINDER (OPTION) of a Wacker Neuson 2003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000186318Not stocked
    boom cylinder×1
  • 21000085498
    $1.32
    cheese head screw - 1000085498×4
  • 31000069235Not stocked
    piston rod×1
  • 41000069227Not stocked
    guide bushing×1
  • 51000020127Not stocked
    hexagon nut×1
  • 61000064803
    $190.33
    FASTENRING - 1000064803×1
  • 71000082760
    $3.63
    LOCK RING - 1000082760×1
  • 81000125202
    $202.18
    shock absorber - 1000125202×1
  • 91000069228Not stocked
    piston×1
  • 101000015384Not stocked
    thread pin×1
  • 111000082819Not stocked
    ballexpander×1
  • 121000082784Not stocked
    ballexpander×1
  • 131000019159
    $39.97
    CYLINDER SEAL KIT - 1000019159×1
  • 141000015614
    $12.93
    steel bushing - 1000015614×2
  • 151000015475Not stocked
    grease nipple×2
  • 161000015480Not stocked
    cap grease nipple×2
  • 171000015491Not stocked
    screw joint×2
  • 181000066391Not stocked
    protection plate overl.warning×1
  • 191000019136Not stocked
    hex screw×2
  • 201000015437Not stocked
    lock washer×6
  • 211000022642Not stocked
    protecting rail×1
  • 221000082625
    $0.83
    washer 19 - 1000082625×1
  • 231000082719
    $0.73
    cotter pin 5x36 - 1000082719×1
  • 241000012980
    $22.62
    GUIDE-ELEMENT - 1000012980×2
  • 251000015431Not stocked
    washer×2
  • 261000186895Not stocked
    hose burst valve×1
  • 271000020797Not stocked
    screw joint×1
  • 281000015504Not stocked
    screw joint×1
  • 291000015678
    $0.38
    O-RING - 1000015678×1
  • 301000049219Not stocked
    washer×1
  • 311000060903
    $27.33
    WEE8LROMDA3C - 1000060903×1
