WN Excavator 2003

2003 hydraulic pump Diagram

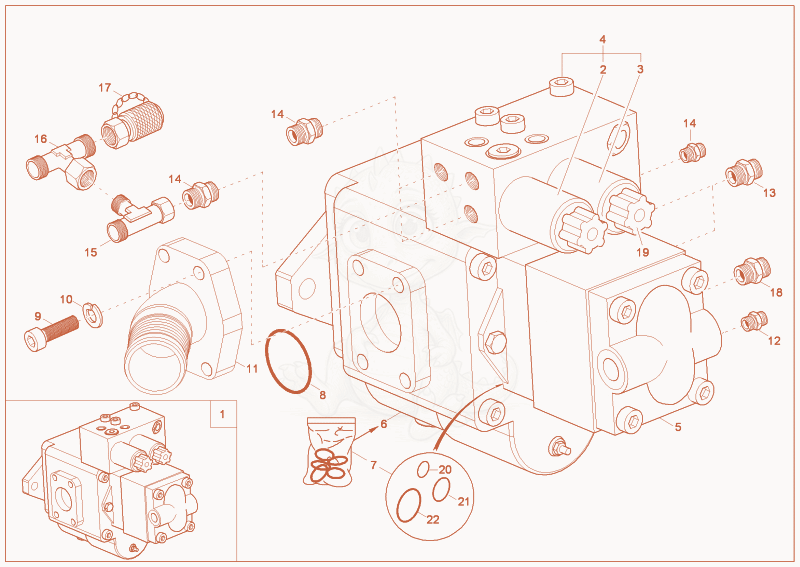

Exploded parts diagram of the hydraulic pump of a Wacker Neuson 2003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000067229Not stocked
    displacement pump×1
  • 21000020883Not stocked
    magnet switch×1
  • 31000020839Not stocked
    magnet switch×1
  • 41000066709Not stocked
    controloil unit×1
  • 51000066708Not stocked
    gear pump×1
  • 61000067230Not stocked
    displacement pump×1
  • 71000021752Not stocked
    seal kit displace. Pump×1
  • 81000000852
    $0.39
    O-RING - 1000000852×1
  • 91000048178Not stocked
    cheese head screw×4
  • 101000015438Not stocked
    lock washer×4
  • 111000066411Not stocked
    suction flange×1
  • 121000082988
    $4.31
    GE08LR3/8OROMDA3C - 1000082988×1
  • 131000082964
    $5.16
    GE15LR1/2OROMDA3C - 1000082964×2
  • 141000082963
    $3.67
    GE08LR1/4OROMDA3C - 1000082963×4
  • 151000015515Not stocked
    screw joint×1
  • 161000015518
    $8.71
    ET08LOMDA3C - 1000015518×1
  • 171000000575Not stocked
    minimess point×1
  • 181000083023
    $8.35
    GE15LR3/8OROMDA3C - 1000083023×1
  • 191000099343
    $44.19
    fastener screw - 1000099343×2
  • 201000012375
    $1.68
    O-RING - 1000012375×1
  • 211000112019
    $2.11
    o-ring - 1000112019×1
  • 221000101502
    $17.30
    o-ring - 1000101502×1
