WN Excavator 2003

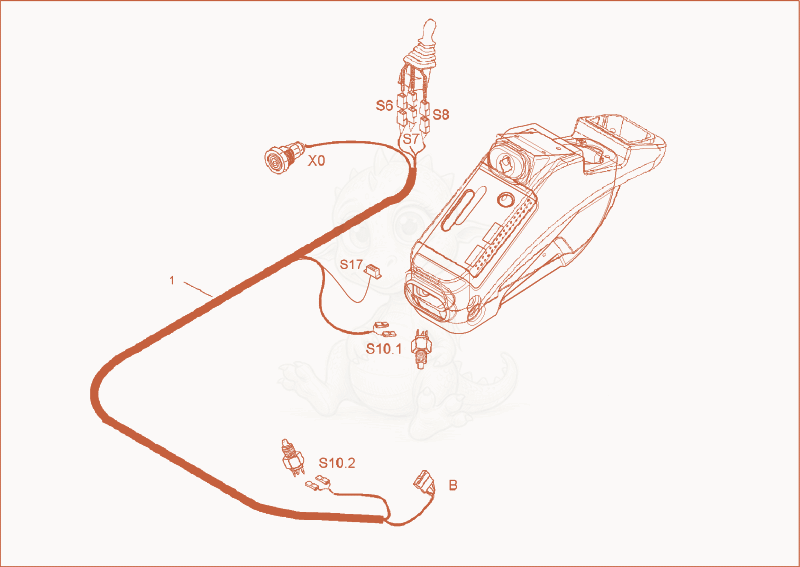

2003 wiring harness armrest Diagram

Exploded parts diagram of the wiring harness armrest of a Wacker Neuson 2003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000066294Not stocked
    wiring harness armrest×1
  • B1000094922
    $2.70
    plug sleeve housing - 1000094922×1
  • B191000095336Not stocked
    plug sleeve housing×1
  • S1011000027435Not stocked
    insulating sleeve×2
  • S1021000027435Not stocked
    insulating sleeve×2
  • S171000124011
    $25.98
    bushing housing - 1000124011×1
  • S401000124011
    $25.98
    bushing housing - 1000124011×1
  • S61000095336Not stocked
    plug sleeve housing×1
  • S71000095336Not stocked
    plug sleeve housing×1
  • S81000095336Not stocked
    plug sleeve housing×1
  • X01000027435Not stocked
    insulating sleeve×3
  • X31000027435Not stocked
    insulating sleeve×2
  • Y251000000455
    $8.90
    Plug - 1000000455×1
