WN Excavator 2003

2003 blade cylinder Diagram

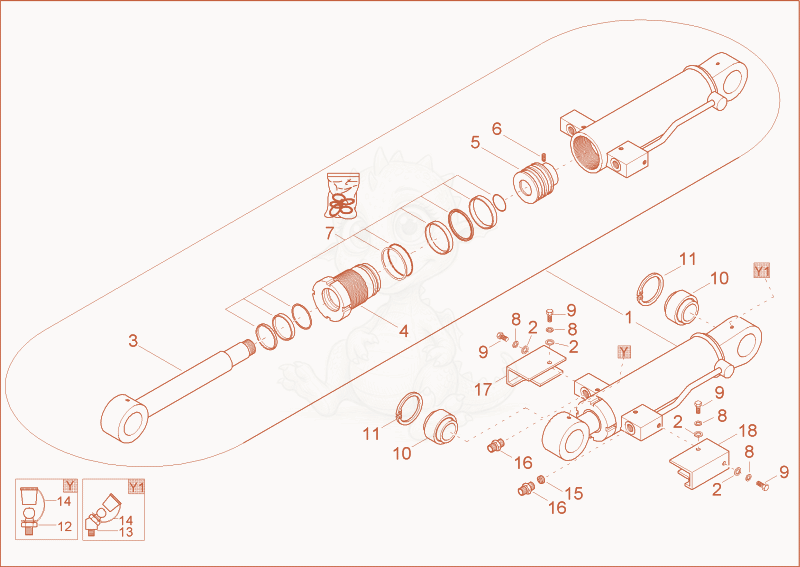

Exploded parts diagram of the blade cylinder of a Wacker Neuson 2003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000186257Not stocked
    blade cylinder×1
  • 21000015431Not stocked
    washer×4
  • 31000068575Not stocked
    piston rod×1
  • 41000021880Not stocked
    guide bushing×1
  • 51000065849Not stocked
    piston×1
  • 61000015384Not stocked
    thread pin×1
  • 71000004494Not stocked
    cylinder seal kit×1
  • 81000015437Not stocked
    lock washer×4
  • 91000085389
    $0.73
    hex screw M8x12-8.8 A2C DIN933 - 1000085389×4
  • 101000015637Not stocked
    pivoting bearing×2
  • 111000082762
    $1.88
    LOCK RING - 1000082762×2
  • 121000015475Not stocked
    grease nipple×1
  • 131000082781
    $5.01
    GREASE NIPPLE - 1000082781×1
  • 141000020783Not stocked
    cap grease nipple×2
  • 151000066461Not stocked
    hose burst protection×1
  • 161000015489Not stocked
    screw joint×2
  • 171000064709Not stocked
    protection plate×1
  • 181000064710Not stocked
    protection plate×1
