WN Excavator 2003

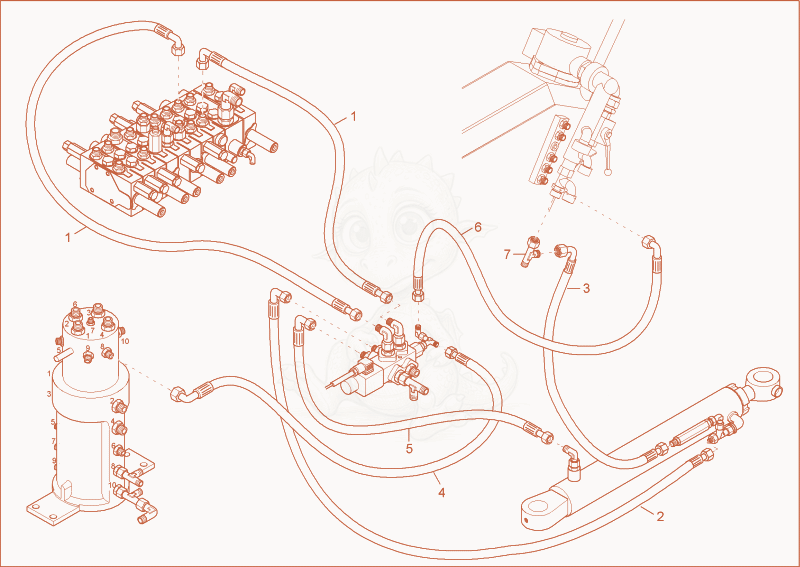

2003 BOOM OFFSET CYLINDER INSTALLATION Diagram

Exploded parts diagram of the BOOM OFFSET CYLINDER INSTALLATION of a Wacker Neuson 2003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000077118Not stocked
    Hose×2
  • 21000104877Not stocked
    Hose×1
  • 31000076924
    $17.78
    SLHYDR 1SC 10 PN12 90 PN12 0 L1500 0 - 1000076924×1
  • 41000112776
    $22.17
    SLHYDR 1SCP6,0PN8 0 PN8 90 L800,0 0 - 1000112776×1
  • 51000076640Not stocked
    Hose×1
  • 61000112774
    $28.14
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1100 0 - 1000112774×1
  • 71000015516
    $13.63
    EL12LOMDA3C - 1000015516×1
